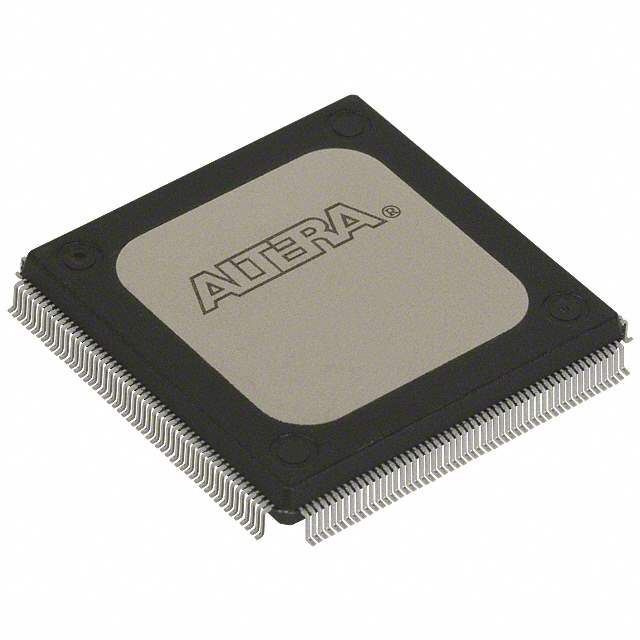

EPM9560ARC208-10N Real Image
Same model may have multiple batches, images only for reference.

EPM9560ARC208-10N

Part No EPM9560ARC208-10N
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description CPLD MAX® 9000 Family 12K Gates 560 Macro Cells 144.9MHz 5V 208-Pin RQFP Tray / IC CPLD 560MC 10NS 208RQFP
Datasheet
EPM9560ARC208-10N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Packaging Tray
Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 10.0ns
Voltage Supply - Internal 4.75 V to 5.25 V
Number of Logic Elements/Blocks 35
Number of Macrocells 560
Number of Gates 12000
Number of I/O 153
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 208-RQFP (28x28)
Win Source Part Number 066570-EPM9560ARC208-10N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name EPM9560A
Introduction Date July 17, 1994
ECCN 3A991
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM9560ARC208-10N CAD Model
