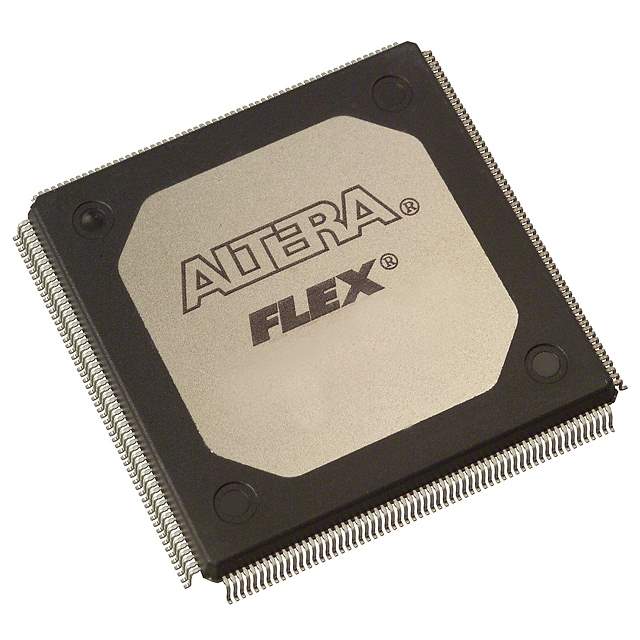

EPF10K70RC240-3 Real Image
Same model may have multiple batches, images only for reference.

EPF10K70RC240-3

Part No EPF10K70RC240-3
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 189 I/O 240RQFP / FPGA FLEX 10K Family 70K Gates 3744 Cells 125MHz 0.42um Technology 5V 240-Pin RQFP
Datasheet
EPF10K70RC240-3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series FLEX-10K
Part Status Obsolete(EOL)
Number of LABs/CLBs 468
Number of Logic Elements/Cells 3744
Total RAM Bits 18432
Number of I/O 189
Number of Gates 118000
Operating Supply Voltage 4.75 V ~ 5.25 V
Mounting SMD
Operating Temperature Range 0°C ~ 70°C (TA)
Package 240-BQFP
Manufacturer Package 240-RQFP (32x32)
Win Source Part Number 774080-EPF10K70RC240-3
Popularity Medium
Supply and Demand Status Limited
Family Name EPF10K70
Introduction Date May 22, 2000
ECCN 3A991
Country of Origin Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPF10K70RC240-3 CAD Model

Description

The Altera FLEX-10K series is an obsolete programmable logic device that features 189 I/Os, 468 LABs/CLBs, and 3744 logic elements/cells.

  • Total RAM: 18432 bits
  • Voltage Supply: 4.75 V to 5.25 V
  • Package: 240-BQFP
  • Status: Obsolete
  • Popularity: High
  • Estimated EOL Date: Passed
