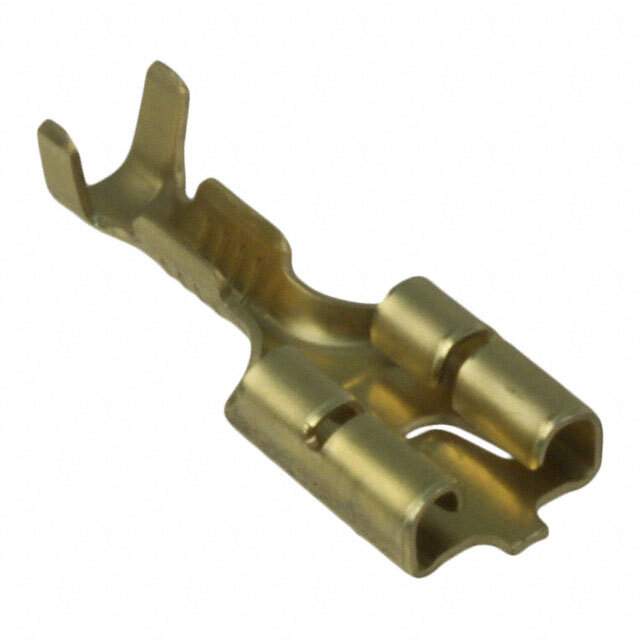

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 63609
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 63609-1-ND,636091,A100791TR,-63609-1-SI,A100791CT
Standard Package 10,000
Win Source Part Number 1219826-63609-1
Ultra Librarian 3D Model Ultra Librarian 63609-1 CAD Model

Description

This TE Connectivity Faston series connector is a female terminal with a tab width of 0.250" (6.35mm), tab thickness of 0.032" (0.81mm), and tab length of 0.305" (7.75mm).

  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.305" (7.75mm)
  • Insulation Material: Non-Insulated
  • Insulation Diameter: 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
  • Wire Gauge: 18-22 AWG
  • Termination Type: Crimp
  • Mounting Type: Free Hanging (In-Line)
  • Package: Tape and Reel (TR) and Cut Tape (CT)
  • Contact Material: Brass
  • Standard Package: 10,000
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
