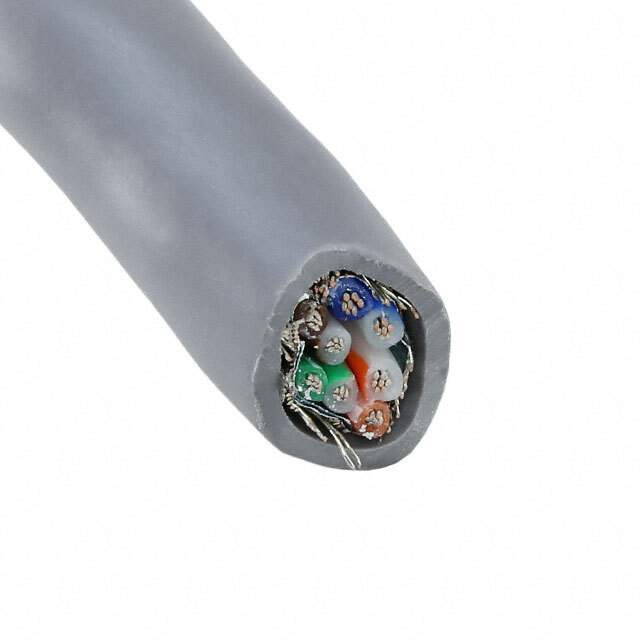

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Alpha Wire
Status Active
Cable Type Multi-Pair
Number of Conductors 8 (4 Pair Twisted)
Wire Gauge 24 AWG
Conductor Strand 7/32
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.265" (6.73mm)
Shield Type Foil, Braid
Length 100.0' (30.5m)
Jacket Color Slate
Ratings UL Style 2464
Features Drain Wire
Voltage 300V
Temperature Range - Operating -20°C to 80°C
Usage Communication, Control
Jacket (Insulation) Thickness 0.032" (0.81mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Shield Coverage 100%, 65%
Win Source Part Number 1011370-6364 SL005
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 6364 SL005 CAD Model

Description

The multi-pair cable is a high-quality communication and control cable that comes with 8 conductors, each made of copper and tinned.

  • Conductors: 8
  • Conductor Material: copper and tinned
  • AWG: 24
  • Length: 100.0 feet (30.5m)
  • Voltage Rating: 300V
  • UL Style: 2464
  • Jacket Material: Poly-Vinyl Chloride (PVC)
  • Jacket Diameter: 0.265 inches (6.73mm)
  • Jacket Thickness: 0.032 inches (0.81mm)
  • Application: communication and control
  • Shielding: foil and braid
  • Shield Material: aluminum and copper, tinned
  • Shield Coverage: 100% and 65%
  • Temperature Range: -20°C to 80°C
