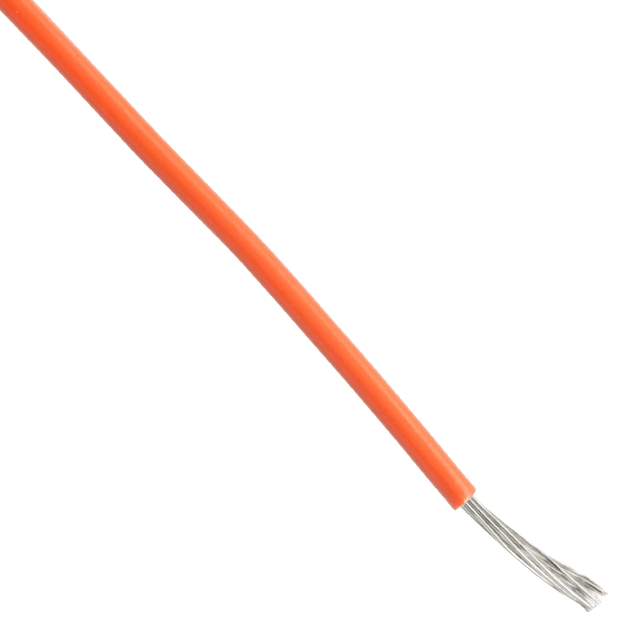

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Alpha Wire
Series 422010
Cable Type Hook-Up
Wire Gauge 20 AWG
Conductor Strand 10/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.057" (1.45mm)
Jacket (Insulation) Thickness 0.010" (0.25mm)
Length 100.0' (30.5m)
Voltage 300V
Operating Temperature Range -10°C ~ 80°C
Jacket Color Orange
Ratings UL Style 1061
Win Source Part Number 761683-422010 OR005
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 422010 OR005 CAD Model

Description

The Alpha Wire 422010 cable is a hook-up cable that is designed to operate in a temperature range of -10°C to 80°C.

  • Voltage Rating: 300V
  • Length: 100.0' (30.5m)
  • Conductor Material: Tinned copper
  • Conductor Strand: 10/30
  • Insulation Material: Poly-Vinyl Chloride (PVC)
  • Insulation Thickness: 0.010" (0.25mm)
  • UL Style: 1061
  • Jacket Color: Orange
  • Applications: Electronic devices
