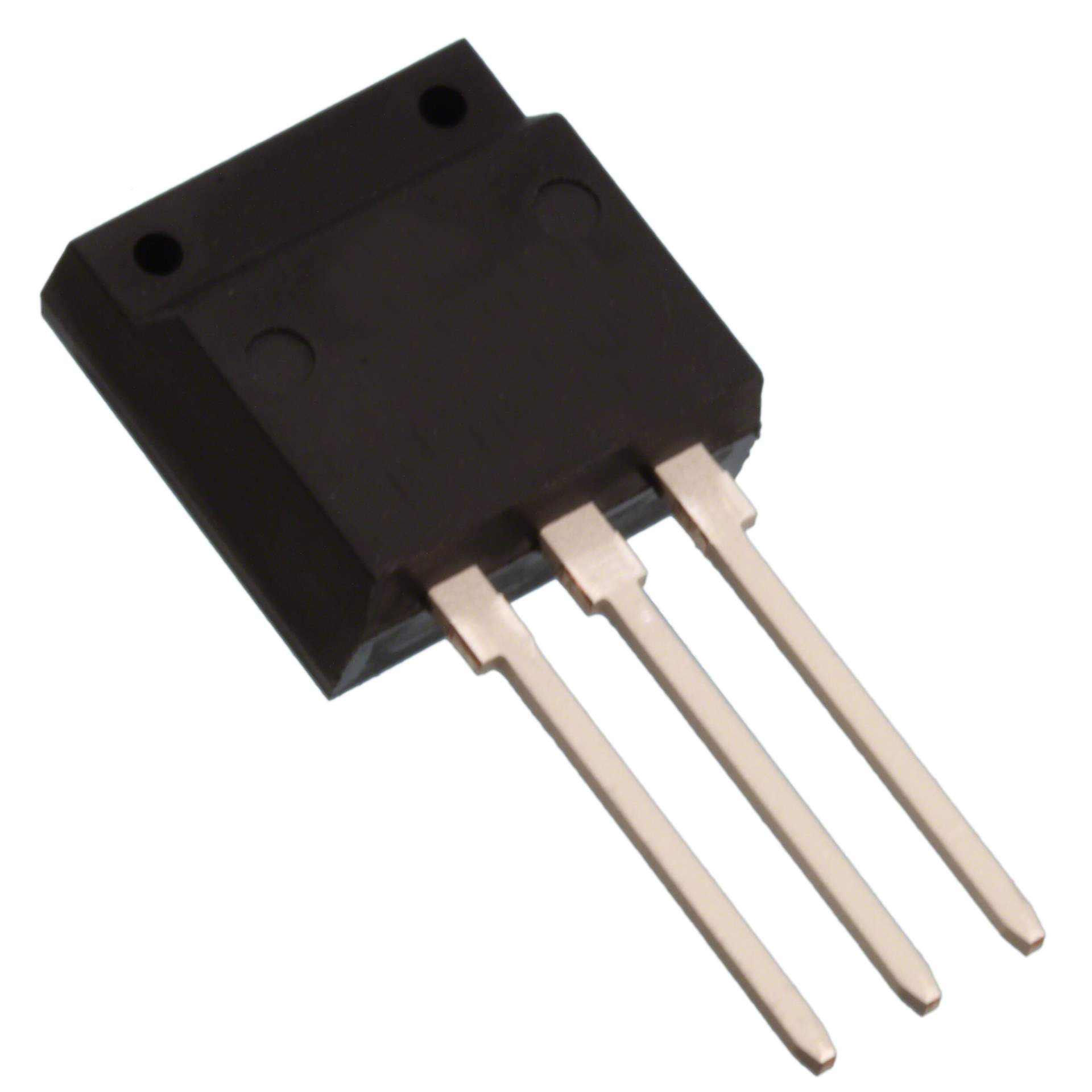

The WF7S60 is a 600V N-Channel MOSFET manufactured by Alpha & Omega Semiconductor. It's designed for high-efficiency power switching applications, utilizing advanced trench technology to minimize on-resistance and gate charge, which results in reduced power losses and improved overall efficiency. The device is available in a TO-220F package, making it suitable for various power electronic applications.

Applications:

• Power Factor Correction (PFC) circuits
• Switch-mode power supplies (SMPS)
• Uninterruptible power supplies (UPS)
• DC-DC converters
• Motor control circuits

Features:

• 600V Drain-Source Voltage (VDS)
• Low On-Resistance (RDS(on))
• Low Gate Charge (Qg)
• Avalanche Rated
• TO-220F Package
• Fast Switching Speed

Benefits:

• High Efficiency: Low RDS(on) and Qg minimize power losses during switching, improving overall system efficiency.
• Reliable Performance: Avalanche rating ensures the MOSFET can withstand transient voltage spikes, enhancing robustness.
• Simplified Design: Fast switching speed simplifies the design process and may reduce the need for additional components.
• Easy to Use: The standard TO-220F package allows for straightforward mounting and heatsinking.
• Reduced Heat Dissipation: Lower power losses translate to less heat generation, contributing to improved system reliability.

Additional Details:

The WF7S60 is designed with a drain-source voltage rating of 600V, making it appropriate for high-voltage applications. Its low on-resistance minimizes conduction losses, while the low gate charge reduces switching losses. The avalanche rating provides extra robustness against voltage transients. The TO-220F package offers adequate thermal performance and easy mounting. This MOSFET is ideal for applications requiring high efficiency, reliability, and ease of use. It is also RoHS compliant.
