The AOZ8809DI-05 is a Transient Voltage Suppressor (TVS) diode manufactured by Alpha & Omega Semiconductor Inc. It is designed to protect sensitive electronic components from voltage transients induced by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning surges. This TVS diode offers fast response time, low clamping voltage, and high surge capability, making it suitable for a variety of applications.

Applications

• Portable devices: Protection for smartphones, tablets, and other portable electronics.
• Data lines: Protection for USB, HDMI, and other data interfaces.
• Power lines: Protection for power supply inputs and outputs.
• Automotive electronics: Protection for automotive control units and sensors.
• Industrial equipment: Protection for industrial control systems and instrumentation.
• Lighting systems: Protection for LED lighting and control circuits.

Features

• Low Clamping Voltage: Minimizes voltage overshoot during transient events, protecting sensitive components.
• Fast Response Time: Quickly clamps transient voltages, preventing damage to protected circuitry.
• High Surge Capability: Withstands high surge currents from ESD, EFT, and lightning.
• Small Package Size: Allows for compact designs and easy integration.
• Low Leakage Current: Minimizes power consumption and extends battery life.
• Bidirectional Protection: Protects against both positive and negative transient voltages.
• AEC-Q101 Qualified: Ensures reliability and performance in automotive applications.

Benefits

• Enhanced Protection: Protects sensitive electronic components from damage due to voltage transients.
• Improved Reliability: Extends the lifespan of electronic products by preventing ESD and surge damage.
• Reduced Downtime: Minimizes equipment failures and downtime due to transient voltage events.
• Simplified Design: Easy to integrate into existing circuits with minimal impact on performance.
• Cost-Effective: Provides reliable protection at a competitive cost.
• Versatile Application: Suitable for a wide range of applications requiring transient voltage protection.
• Automotive Compliance: Meets the requirements for automotive electronic systems.

Additional Details

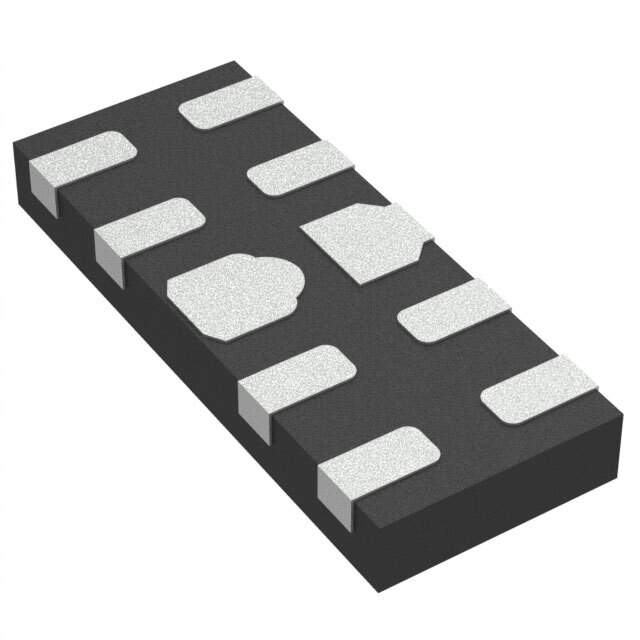

The AOZ8809DI-05 is typically available in a small surface-mount package. Key specifications include breakdown voltage, clamping voltage, surge current capability, and leakage current. The device's performance is influenced by factors such as temperature and transient waveform characteristics.

When selecting the AOZ8809DI-05 for an application, it's important to consider the expected transient voltage levels and surge currents. Proper PCB layout and grounding techniques are also essential for achieving optimal protection performance.
