Same model may have multiple batches, images only for reference.

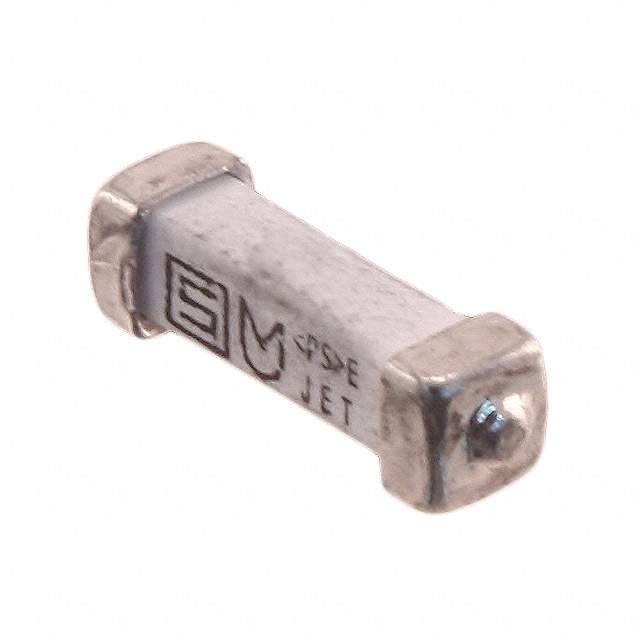

3403.0171.11 Real Image
Same model may have multiple batches, images only for reference.

3403.0171.11

Part No 3403.0171.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 3.15A 250VAC 125VDC / 3.15 A 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
3403.0171.11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr SCHURTER Inc.
Series UMT 250
Package Bulk
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 200A AC, 35A DC
Melting I2t 14
Approval Agency CQC, cURus, KC, PSE/JET, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
Base Product Number 3403.0171
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1336844-3403.0171.11
Ultra Librarian 3D Model Ultra Librarian 3403.0171.11 CAD Model

Description

The Schurter Inc. 1336844-3403.0171.11 is a slow blow fuse with a breaking capacity of 200A AC and 35A DC @ rated voltage.

  • Mounting Type: Board Mount
  • Voltage Rating: 250V AC and 125V DC
  • Melting I2t: 14
  • Size: 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm)
  • Mounting Style: Surface Mount
  • Package: 2-SMD Square End Block
  • Operating Temperature: -55°C to 125°C
