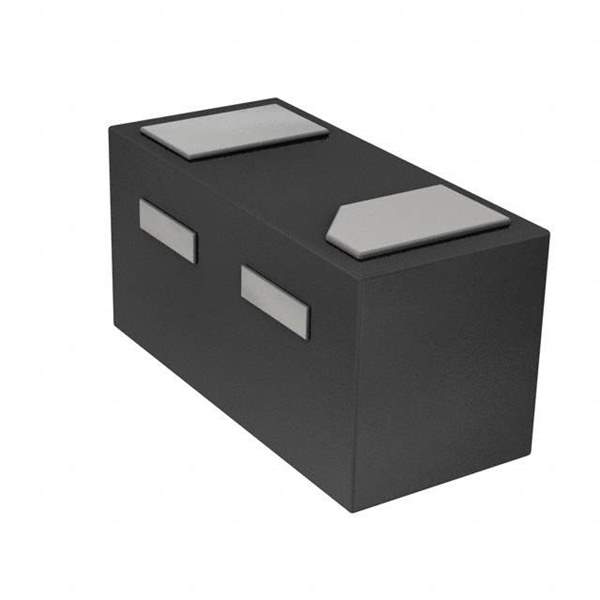

Same model may have multiple batches, images only for reference.

AOZ8251BDI-05

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AOZ8251BDI-05
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 24VC 2DFN / 24V Clamp 16A Ipp Tvs Diode Surface Mount 2-DFN (0.62x0.32)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Alpha & Omega Semiconductor Inc.
Package	Tape & Box (TB)
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	24V
Current - Peak Pulse (10/1000µs)	16A
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	5pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting	SMD (SMT)
Package / Case	0201 (0603 Metric)
Supplier Device Package	2-DFN (0.62x0.32)
Base Product Number	AOZ8251
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	785-AOZ8251BDI-05TB
Standard Package	10,000
Win Source Part Number	1192226-AOZ8251BDI-05
Ultra Librarian 3D Model	Ultra Librarian AOZ8251BDI-05 CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor Inc. AOZ8251BDI-05 is a Zener diode manufactured by Alpha & Omega Semiconductor Inc.

Application: General Purpose
Reverse Standoff Voltage: 5V
Voltage Breakdown: 5.5V
Clamping Voltage: 24V
Peak Pulse Current: 16A
Capacitance: 5pF @ 1MHz
Package: 0201 (0603 Metric)
