Same model may have multiple batches, images only for reference.

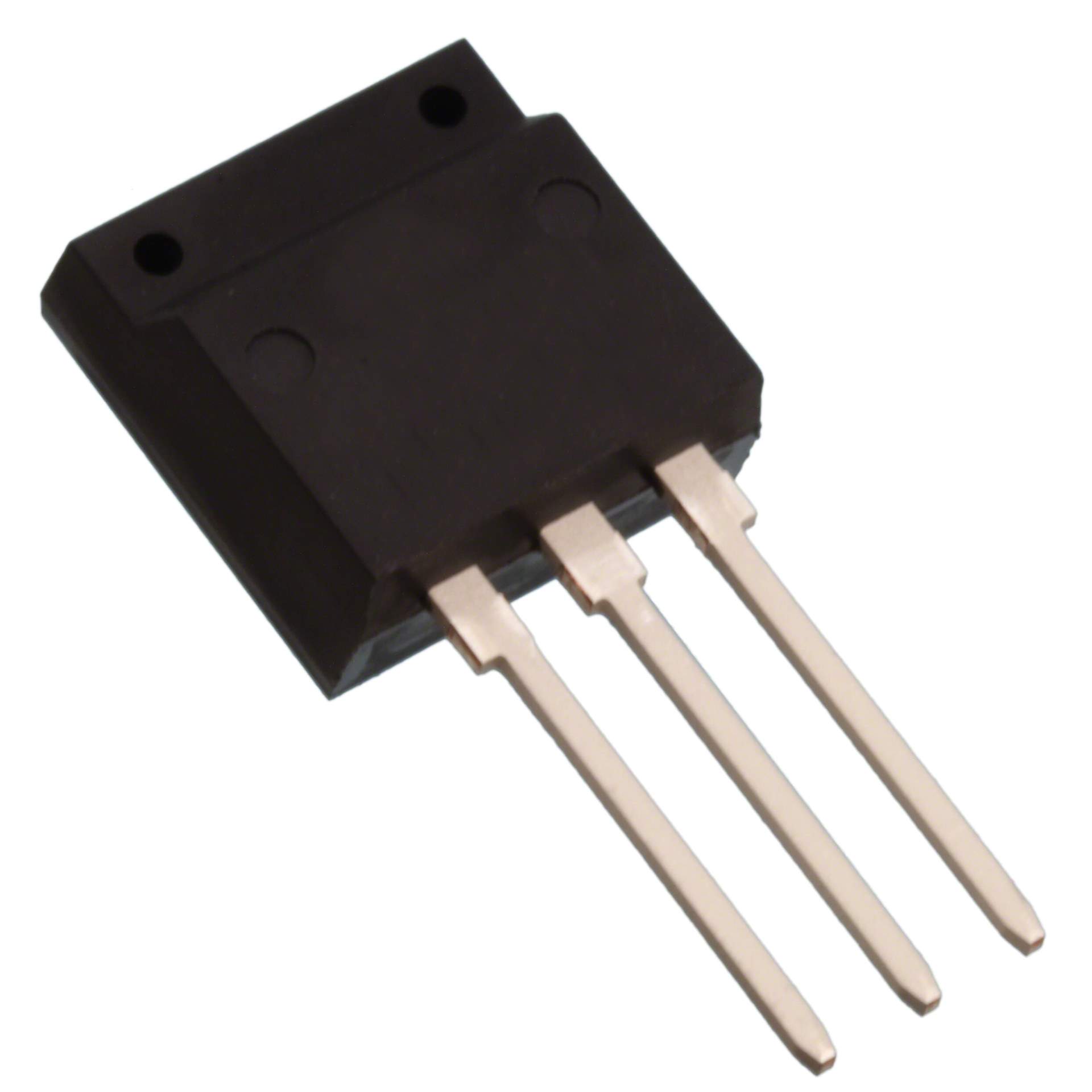

AOWF11N60 Real Image
Same model may have multiple batches, images only for reference.

AOWF11N60

Part No AOWF11N60
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description TO362F PACKAGE MARKING DESCRIPTION
Datasheet
AOWF11N60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Tube
Channel Type Type N
Technology MOSFET
Drain Source Voltage 600V
Current - Continuous Drain (Id) @ 25°C 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4.5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 37nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1990pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 27.8W (Tc)
Rds On (Maximum) @ Id, Vgs 650 mOhm @ 5.5A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-262F
Package TO-262-3 Long Leads, I2Pak, TO-262AA
Win Source Part Number 1145078-AOWF11N60
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Balance
Family Name AOWF11N60
Introduction Date January 16, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian AOWF11N60 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AOWF11N60 is a MOSFET technology integrated circuit (IC) with a through-hole mounting style and a TO-262-3 long leads, I2Pak, TO-262AA package.

  • Temperature Range: -55°C to 150°C (TJ)
  • Current - Continuous Drain (Id) @ 25°C: 11A (Tc)
  • Power Dissipation (Maximum): 27.8W (Tc)
  • Applications: Power supplies, motor control, and lighting.
  • Popularity: Medium
  • Supply and Demand Status: Balance
