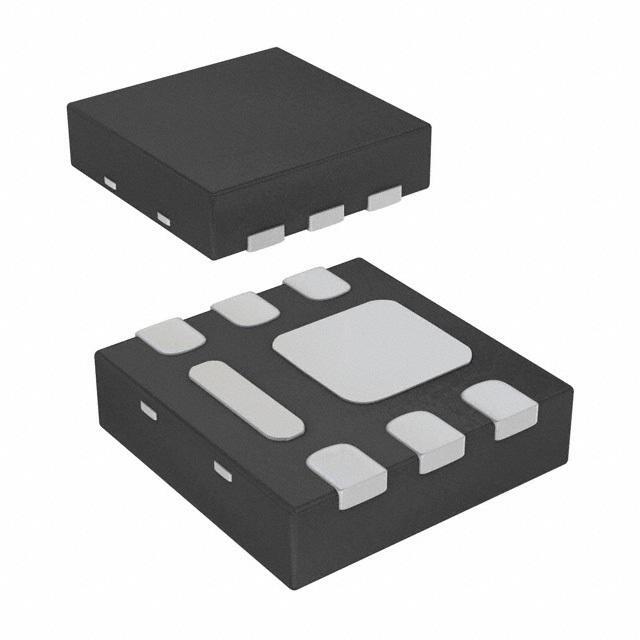

AON2420 Alpha & Omega Semiconductor Inc. AON2420 Real Image
Same model may have multiple batches, images only for reference.
AON2420 Alpha & Omega Semiconductor Inc. AON2420 Real Image
AON2420 Alpha & Omega Semiconductor Inc. AON2420 Real Image
Same model may have multiple batches, images only for reference.

AON2420

Part No AON2420
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description 30V N-Channel AlphaMOS
Datasheet
AON2420 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 2.2V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 12nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 552pF @ 15V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 2.8W (Ta)
Rds On (Maximum) @ Id, Vgs 11.7 mOhm @ 8A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 6-DFN-EP (2x2)
Package 6-UDFN Exposed Pad
Win Source Part Number 1144968-AON2420
Manufacturer Homepage www.aosmd.com
Family Name AON2420
Introduction Date April 22, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON2420 CAD Model

Description

The AON2420 is a high popularity MOSFET transistor manufactured by Alpha & Omega Semiconductor Inc.

  • Supply and Demand Status: Balanced
  • Win Source Part Number: 1144968-AON2420
  • Manufacturer Homepage: www.aosmd.com
  • Temperature Range: -55°C to 150°C (TJ)
  • Package: 6-UDFN Exposed Pad
  • Power Dissipation: 2.8W (Ta) (max)
  • Rds On: 11.7 mOhm @ 8A, 10V (max)
  • Vgs(th): 2.2V @ 250μA (max)
  • Gate Charge (Qg): 12nC @ 10V (max)
  • Input Capacitance (Ciss): 552pF @ 15V (max)
  • Vgs: ±20V (max)
