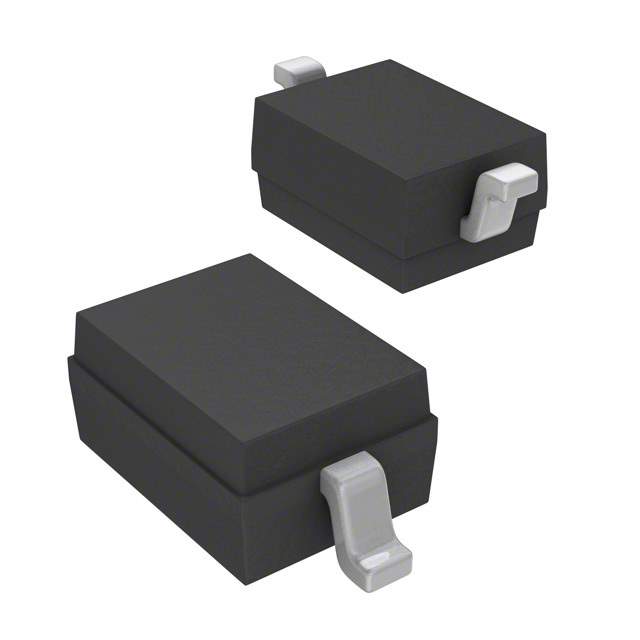

The SMP1320-011 is a low-capacitance plastic packaged PIN diode designed for use in high volume switch applications from Alpha Industries, now Skyworks Solutions. It is characterized by its low insertion loss and high isolation capabilities, making it suitable for various RF and microwave applications.

Applications:

• RF Switches: Used in SPDT, SP3T, and other multi-throw switch configurations.
• Phase Shifters: Employed in circuits requiring variable phase control.
• Attenuators: Used in variable attenuators to control signal levels.
• Limiters: Protects sensitive receiver components from high-power signals.
• Wireless Communications: Integrated into wireless communication systems for signal routing and control.

Features:

• Low Capacitance: Minimizes insertion loss and improves high-frequency performance.
• Fast Switching Speed: Enables rapid switching between different RF paths.
• Low Insertion Loss: Preserves signal integrity in the 'on' state.
• High Isolation: Provides excellent signal isolation in the 'off' state.
• Plastic Package: Offers cost-effective and reliable packaging for high-volume applications.

Benefits:

• Enhanced System Performance: Low capacitance and fast switching speed improve overall system performance.
• Improved Signal Integrity: Low insertion loss ensures minimal signal degradation.
• Increased Isolation: High isolation prevents signal leakage and interference.
• Cost-Effective Solution: Plastic package reduces overall system cost.
• Reliable Operation: Designed for stable and consistent performance in demanding environments.

Specifications:

The SMP1320-011 typically features a capacitance of 0.4 pF and a series resistance of 1.5 Ohms. It has a breakdown voltage of 30V. The switching speed is typically in the nanosecond range. It is commonly available in a surface-mount plastic package. It is designed for use in applications up to several GHz.

The diode's thermal resistance is designed to facilitate efficient heat dissipation, ensuring reliable operation. The forward voltage and reverse recovery time are tightly controlled to ensure consistent switching behavior.
