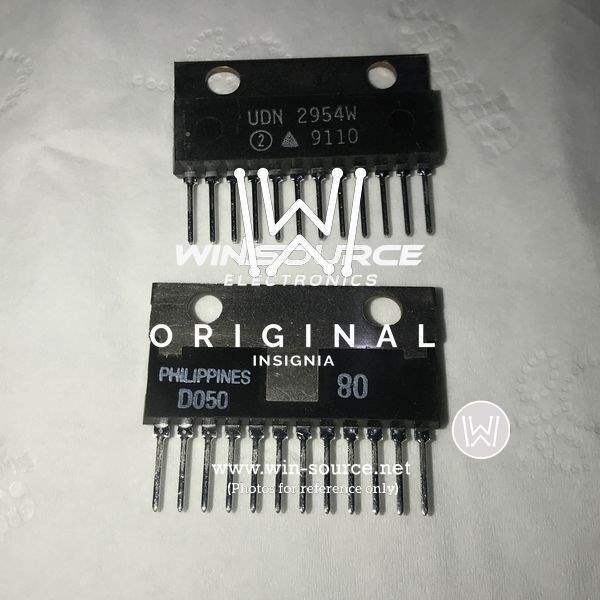

The UDN2954W is a full-bridge PWM motor driver designed for driving DC motors or one phase of a stepper motor. Manufactured by Allegro MicroSystems, this device is ideal for applications requiring precise motor control and efficient power utilization. It incorporates internal protection features to ensure robust operation.

Applications

• DC motor control
• Stepper motor control (single phase)
• Robotics
• Automotive actuators
• Industrial automation

Features

• Full-bridge driver
• PWM control
• Internal clamp diodes for inductive load protection
• Thermal shutdown protection
• Overcurrent protection
• Low saturation voltage

Benefits

• Precise motor control: PWM capability allows fine-tuning of motor speed and torque.
• High efficiency: Low saturation voltage minimizes power loss.
• Simplified design: Integrated clamp diodes reduce the need for external components.
• Enhanced reliability: Built-in protection features prevent damage from overcurrent and overtemperature conditions.

Additional Details

The UDN2954W typically operates from a specific supply voltage range (consult datasheet for specific voltage) and is capable of delivering a specific continuous current (refer to datasheet for amperage). The PWM frequency is typically adjustable. For detailed specifications, including voltage ranges, current limits, thermal characteristics, and PWM frequency capabilities, refer to the manufacturer's datasheet. The device is commonly available in a surface-mount package for efficient board assembly.
