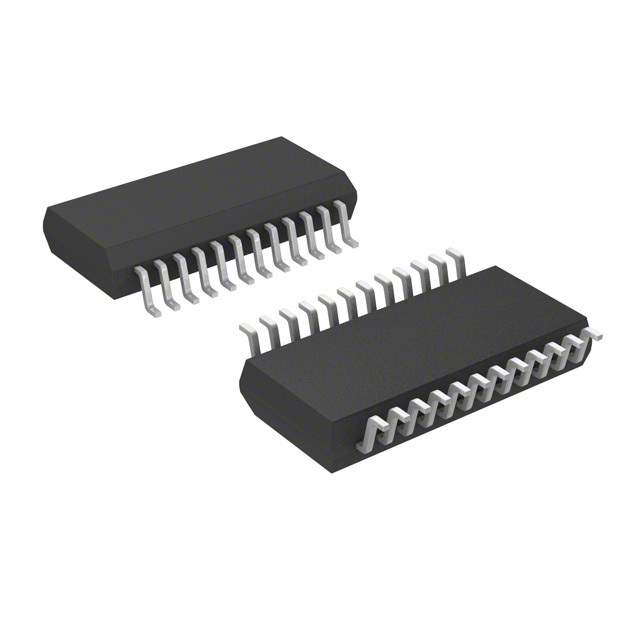

Same model may have multiple batches, images only for reference.

ACS764XLFTR-32AU-T

Name: ACS764XLFTR-32AU-T
Brand: Allegro MicroSystems, LLC
SKU: 971032
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ACS764XLFTR-32AU-T
Manufacturer	Allegro MicroSystems, LLC
Catalog	Current Transducers
Description	SENSOR CURRENT HALL 32A DC / Current Sensor 32A 1 Channel Hall Effect, Open Loop Unidirectional 24-SSOP (0.154", 3.90mm Width)
Datasheet	ACS764XLFTR-32AU-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Current Sensors
Mfr	Allegro MicroSystems
Package	Tape & Reel
Product Status	Obsolete
For Measuring	DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	32A
Number of Channels	1
Output	I2C
Frequency	2kHz
Linearity	±0.75%
Accuracy	±1%
Voltage - Supply	3V ~ 3.6V
Response Time	100µs
Current - Supply (Max)	14mA
Temperature Range - Operating	-40°C ~ 125°C
Polarization	Unidirectional
Mounting	SMD (SMT)
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-QSOP
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	620-1556-6,620-1556-2,620-1556-1
Standard Package	2,500
Win Source Part Number	971032-ACS764XLFTR-32AU-T
Ultra Librarian 3D Model	Ultra Librarian ACS764XLFTR-32AU-T CAD Model

Alternative Products

Description

The ACS764XLFTR-32AU-T is a Hall Effect, Open Loop current sensor manufactured by Allegro MicroSystems.

Manufacturer: Allegro MicroSystems
Type: Hall Effect, Open Loop
Current Sensing: Up to 32A
Accuracy: ±1%
Linearity: ±0.75%
Supply Voltage Range: 3V to 3.6V
Frequency: 2kHz
Output: I2C
Response Time: 100µs
Package: 24-SSOP (0.154", 3.90mm Width)
Supplier Device Package: 24-QSOP
RoHS Compliant: Yes
Category: Sensors, Transducers>Current Sensors
Obsolete: Yes
