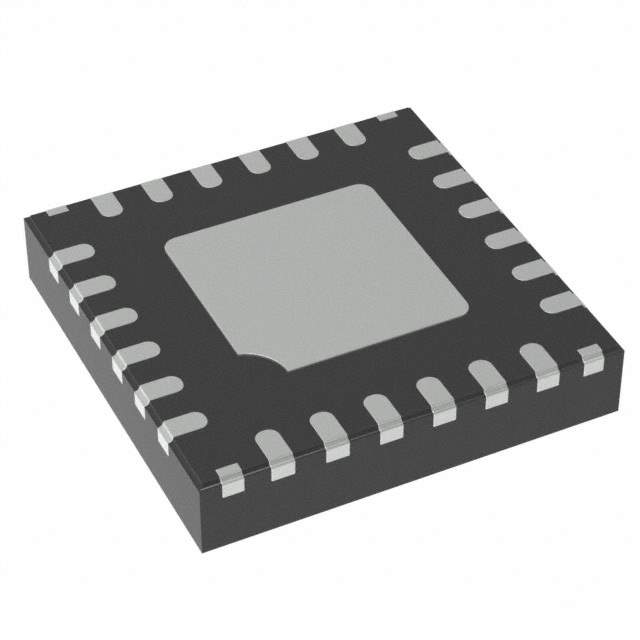

A80601KESJSR

Name: A80601KESJSR
Brand: Allegro MicroSystems, LLC
SKU: 1170232
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	A80601KESJSR
Manufacturer	Allegro MicroSystems, LLC
Catalog	PMIC - LED Drivers
Description	IC LED DRVR CTRL PWM 210MA 24QFN / LED Driver IC 4 Output DC DC Controller SEPIC, Step-Up (Boost) Analog, PWM Dimming 210mA 24-QFN (4x4)
Datasheet	A80601KESJSR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - LED Drivers
Mfr	Allegro MicroSystems
Series	Automotive, AEC-Q100
Package	Tape & Reel
Type	DC DC Controller
Topology	SEPIC, Step-Up (Boost)
Internal Switch(s)	No
Number of Outputs	4
Voltage - Supply (Min)	4.5V
Voltage - Supply (Max)	40V
Voltage - Output	4.05V ~ 4.45V
Current - Output / Channel	210mA
Frequency	200kHz ~ 2.15MHz
Dimming	Analog, PWM
Applications	Automotive, Backlight
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	24-WFQFN Exposed Pad
Supplier Device Package	24-QFN (4x4)
Base Product Number	A80601
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	620-2038-2,620-2038-1,620-2038-6
Standard Package	6,000
Win Source Part Number	1170232-A80601KESJSR
Ultra Librarian 3D Model	Ultra Librarian A80601KESJSR CAD Model

Alternative Products

Description

The 1170232-A80601KESJSR is a DC-DC controller that belongs to the automotive series of integrated circuits from Allegro MicroSystems.

Topology: SEPIC
Configuration: Step-Up (Boost)
Voltage Output: 4.05V to 4.45V
Frequency Range: 200kHz to 2.15MHz
Outputs: Four
Dimming: Analog and PWM
Output Current: 210mA
Supply Voltage: 4.5V to 40V
Applications: Automotive and Backlight
Package: Tape and Reel
Package/Case: 24-WFQFN Exposed Pad
RoHS: Compliant
