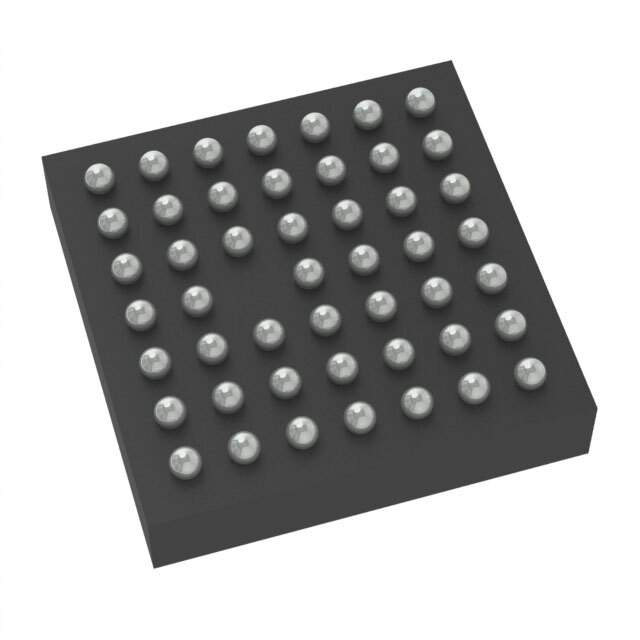

XC9536XL-7CS48C Real Image
Same model may have multiple batches, images only for reference.

XC9536XL-7CS48C

Part No XC9536XL-7CS48C
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 36MC 7.5NS 48CSBGA
Datasheet
XC9536XL-7CS48C Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Packaging Tray
Status Active
Programmable Type In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max 7.5ns
Voltage Supply - Internal 3 V to 3.6 V
Number of Logic Elements/Blocks 2
Number of Macrocells 36
Number of Gates 800
Number of I/O 36
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 48-CSBGA (7x7)
Win Source Part Number 036626-XC9536XL-7CS48C
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XC9536XL-7CS48C CAD Model

Description

The XC9536XL-7CS48C from Xilinx Inc. is an in-system programmable CPLD.

  • Gates: 800
  • Macrocells: 36
  • I/Os: 36
  • Internal Voltage Supply: 3 V to 3.6 V
  • Delay Time tpd(1) max: 7.5ns
  • Mounting: SMD (SMT)
  • Case/Package: 48-CSBGA (7x7)
  • Popularity: Medium
  • Supply and Demand Status: Limited
