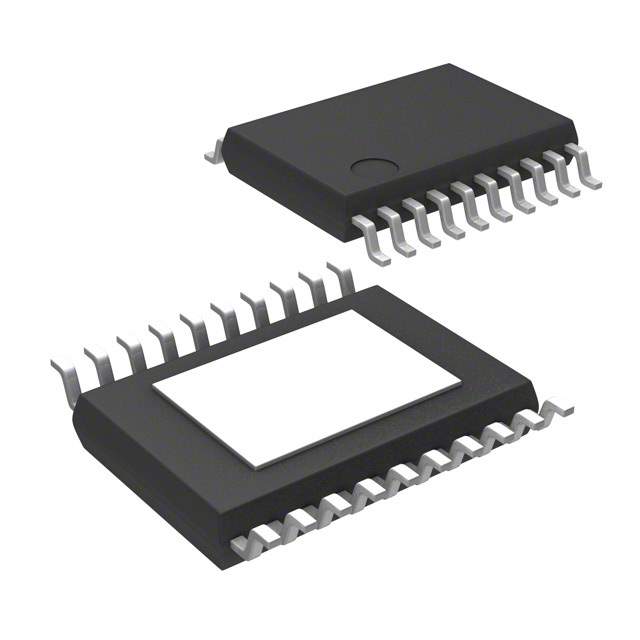

A4956KLPTR-T Real Image
Same model may have multiple batches, images only for reference.

A4956KLPTR-T

Part No A4956KLPTR-T
Manufacturer Allegro MicroSystems, LLC
Catalog Interface - Specialized
Description IC MOTOR DRIVER 5.5V-50V 20TSSOP / Motor Driver NMOS Parallel 20-TSSOP-EP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Allegro MicroSystems
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Not For New Designs
Motor Type - AC, DC Brushed DC
Function Controller - Commutation, Direction Management
Output Configuration Pre-Driver - Half Bridge (2)
Interface Parallel
Technology NMOS
Applications General Purpose
Voltage - Supply 5.5V ~ 50V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 20-TSSOP-EP
Base Product Number A4956
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-A4956KLPTR-T,620-1774-1,620-1774-2,ALLALLA4956KLPTR-T,620-1774-6
Standard Package 8,000
Win Source Part Number 1153810-A4956KLPTR-T
Ultra Librarian 3D Model Ultra Librarian A4956KLPTR-T CAD Model

Description

The A4956KLPTR-T is a fully integrated motor driver IC designed for use in brushed DC motor applications.

  • Output Stage: Pre-Driver Half-Bridge
  • Interface: Parallel
  • Technology: NMOS
  • Application: General Purpose
  • Package: 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
  • Packaging: Tape and Reel
