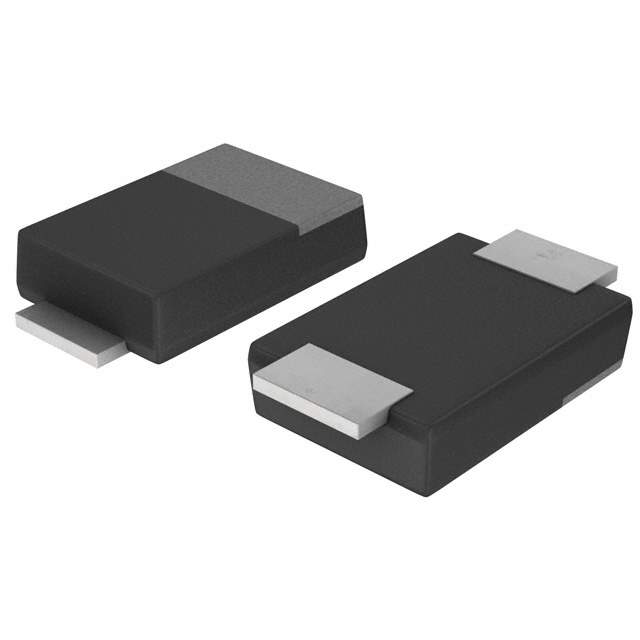

RSX501LA-20TR Real Image
Same model may have multiple batches, images only for reference.

RSX501LA-20TR

Part No RSX501LA-20TR
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 5A PMDT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 390mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 20V
Mounting SMD (SMT)
Case / Package PMDT
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1092814-RSX501LA-20TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RSX501LA-20TR CAD Model

Description

The RSX501LA-20TR is a Schottky diode manufactured by Rohm Semiconductor.

  • Maximum Reverse Voltage: 20V
  • Average Rectified Current: 5A
  • Forward Voltage: 390mV @ 3A
  • Reverse Leakage Current: 500μA @ 20V
  • Recovery Speed: 200mA (Io)
  • Operating Temperature: 125°C (Max)
