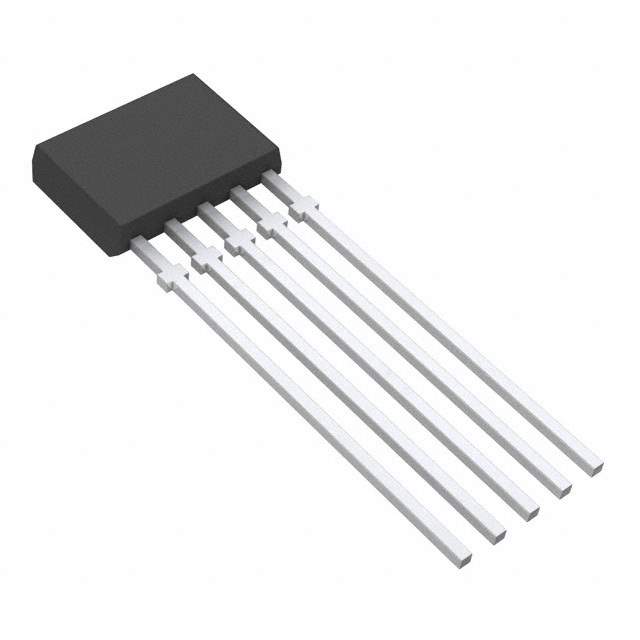

A3422EKA Real Image
Same model may have multiple batches, images only for reference.

A3422EKA

Part No A3422EKA
Manufacturer Allegro MicroSystems, LLC
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAGNETIC SWITCH BIPOLAR 5SIP / Digital Switch Bipolar Switch Open Collector Hall Effect 5-SIP
Datasheet
A3422EKA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Allegro MicroSystems
Package Bulk
Product Status Obsolete
Function Bipolar Switch
Technology Hall Effect
Polarization North Pole, South Pole
Sensing Range 7.5mT Trip, -7.5mT Release
Test Condition 25°C
Voltage - Supply 4.5V ~ 18V
Current - Supply (Max) 18mA
Current - Output (Max) 30mA
Output Type Open Collector
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Supplier Device Package 5-SIP
Package / Case 5-SSIP
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 500
Win Source Part Number 1184808-A3422EKA
Ultra Librarian 3D Model Ultra Librarian A3422EKA CAD Model

Description

The A3422EKA is a magnetic sensor switch from Allegro MicroSystems.

  • Type: Solid State, Hall Effect
  • Output Type: Open Collector
  • Function: Bipolar Switch
  • Sensing Range: 7.5mT Trip, -7.5mT Release
  • Operating Voltage: 4.5V to 18V
  • Mounting Type: Through Hole
  • Package/Case: 5-SSIP
  • Operating Temperature: -40°C to 85°C
  • REACH Status: Unaffected
