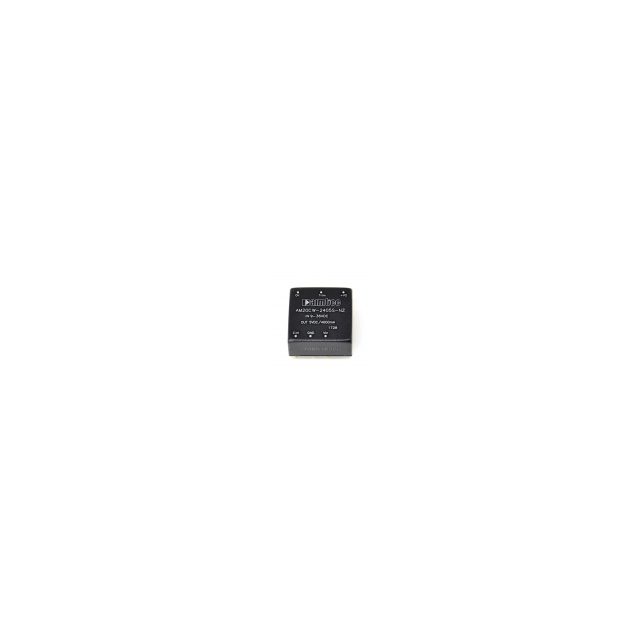

AM20CW-2405S-NZ Real Image
Same model may have multiple batches, images only for reference.

AM20CW-2405S-NZ

Part No AM20CW-2405S-NZ
Manufacturer AIMTEC
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V 20W  /  Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input
Datasheet
AM20CW-2405S-NZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr aimtec
Series AM20CW-NZ (20W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 4A
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 65°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Approval Agency CE
Base Product Number AM20C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2721-AM20CW-2405S-NZ
Standard Package 19
Win Source Part Number 1222567-AM20CW-2405S-NZ
Ultra Librarian 3D Model Ultra Librarian AM20CW-2405S-NZ CAD Model

Description

The AM20CW-NZ (20W) series isolated module DC-DC converter is designed for ITE (Commercial) applications.

  • Features: Remote On/Off control, 1.5 kV voltage isolation
  • Efficiency: 90%
  • Maximum Output Current: 4A
  • Maximum Input Voltage Range: 9V to 36V
  • Output Voltage: 5V
  • Package: 6-DIP Module
  • Operating Temperature: -40°C to 65°C (With Derating)
  • Dimensions: 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
  • Manufacturer: Aimtec
  • Approval: CE
