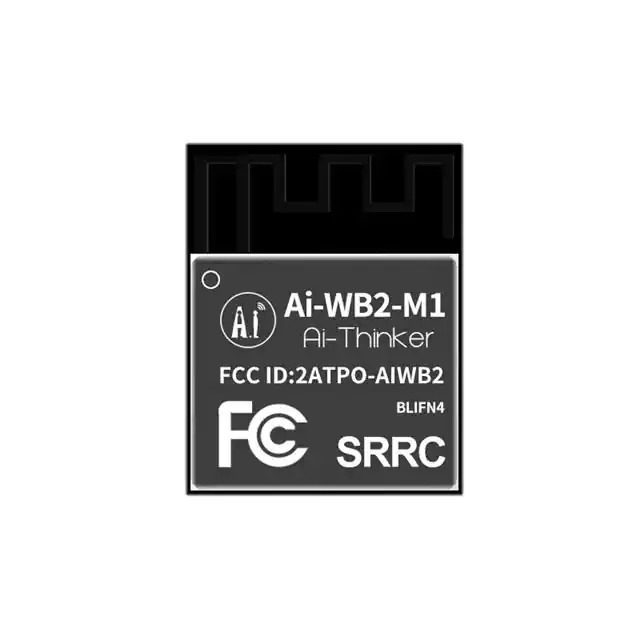

Same model may have multiple batches, images only for reference.
AI-WB2-M1 Ai-Thinker
Same model may have multiple batches, images only for reference.

AI-WB2-M1

Part No AI-WB2-M1
Manufacturer Ai-Thinker
Catalog RF Transceiver Modules
Description MINI WIFI + BLE5.0 MODULE, BL602 / Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.4GHz PCB Trace Surface Mount
Datasheet
AI-WB2-M1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Strip
Product Status Active
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v5.0
Modulation -
Frequency 2.4GHz
Data Rate 72.2Mbps
Power - Output 19dBm
Sensitivity -98dBm
Serial Interfaces GPIO, I²C, JTAG, PWM, SDIO, SPI, UART
Antenna Type PCB Trace
Utilized IC / Part BL602
Memory Size 4MB Flash
Voltage - Supply 2.7V ~ 3.6V
Current - Receiving 65mA
Current - Transmitting 230mA ~ 260mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 61-SMD Module
MSL Level Not Applicable
ECCN 5A002A1
HTSUS 8517.62.0090
Win Source Part Number 1370920-AI-WB2-M1
Ultra Librarian 3D Model Ultra Librarian AI-WB2-M1 CAD Model

Description

The AI-WB2-M1 RF transceiver module is a high-performance solution for your wireless communication needs developed by Ai-Thinker.

  • Operating Temperature: -40°C to 85°C
  • Frequency: 2.4GHz
  • Package: 61-SMD
  • Protocols: 802.11b/g/n, Bluetooth v5.0
  • Antenna: PCB Trace
  • Power Output: 19dBm
  • Sensitivity: -98dBm
