Same model may have multiple batches, images only for reference.

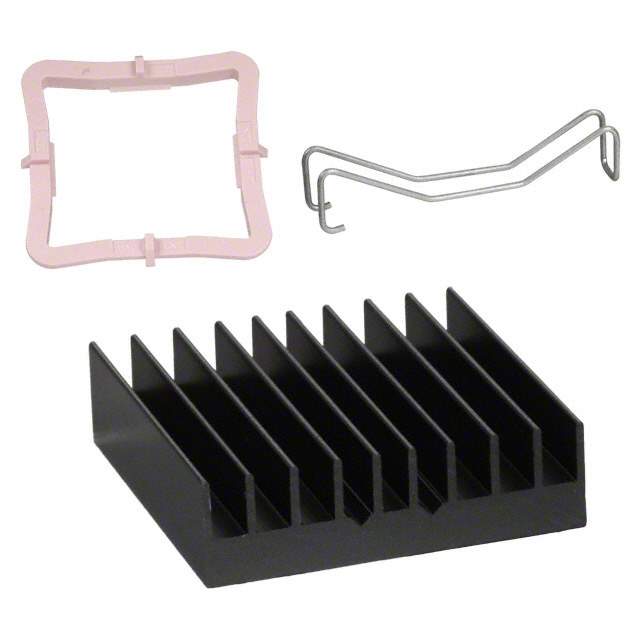

ATS-53330D-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-53330D-C1-R0

Part No ATS-53330D-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEAT SINK 33MM X 33MM X 9.5MM / Heat Sink BGA Aluminum Top Mount
Datasheet
ATS-53330D-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series maxiGRIP
Package Bulk
Type Top Mount
Package Cooled BGA
Attachment Method Clip, Thermal Material
Shape Square, Fins
Length 1.299" (32.99mm)
Width 1.299" (32.99mm)
Fin Height 0.374" (9.50mm)
Thermal Resistance @ Forced Air Flow 11.10°C/W @ 200 LFM
Material Aluminum
Material Finish Black Anodized
Base Product Number ATS-533
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Other Names ATS53330DC2R0,ATS1157,ATS-53330D-C2-R0,-ATS-53330D-C1-R0
Standard Package 100
Win Source Part Number 1130504-ATS-53330D-C1-R0
Ultra Librarian 3D Model Ultra Librarian ATS-53330D-C1-R0 CAD Model

Description

The Advanced Thermal Solutions Inc. maxiGRIP series top mount heat sink from Advanced Thermal Solutions Inc. has a length and width of 1.299" (32.99mm) and is made of aluminum.

  • Length and Width: 1.299" (32.99mm)
  • Material: Aluminum
  • Shape: Square shape with fins
  • Package Cooled: BGA
  • Attachment Method: Clip with thermal material
  • Thermal Resistance: 11.10°C/W @ 200 LFM
  • Finish: Black anodized
  • Packaging: Bulk packaging
  • Standard Package: 100
