ATS-20C-40-C2-R0

Part No ATS-20C-40-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 57.9X60.96X11.43MM T766 / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Bulk
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Rectangular, Fins
Length 2.280" (57.90mm)
Width 2.400" (60.96mm)
Fin Height 0.450" (11.43mm)
Thermal Resistance @ Forced Air Flow 14.56°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-20C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Other Names ATS-38731,ATS-20C-40-C2-R0-ND
Standard Package 10
Win Source Part Number 1156241-ATS-20C-40-C2-R0
Ultra Librarian 3D Model Ultra Librarian ATS-20C-40-C2-R0 CAD Model

Description

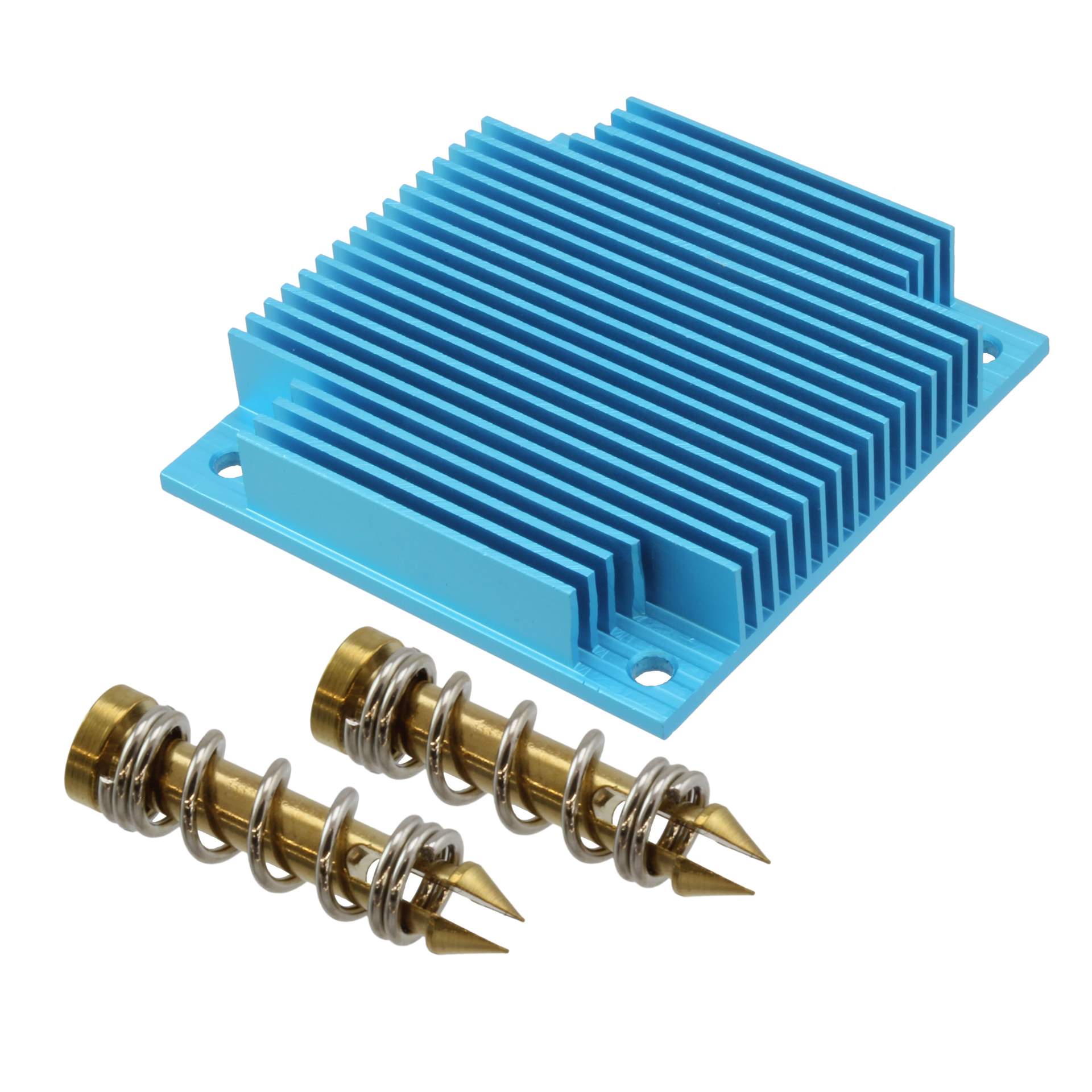

The Advanced Thermal Solutions Inc. ATS-20C-40-C2-R0 heat sink is a rectangular aluminum top mount heat sink that comes in a bulk package.

  • Mount: top
  • Material: aluminum
  • Package: bulk
  • Series: pushPIN™
  • Suitable for: BGA, LGA, CPU, ASIC, etc.
  • Category: fan
  • REACH: unaffected
  • ECCN: EAR99
  • Thermal Resistance: 14.56℃/W @ 100 LFM
