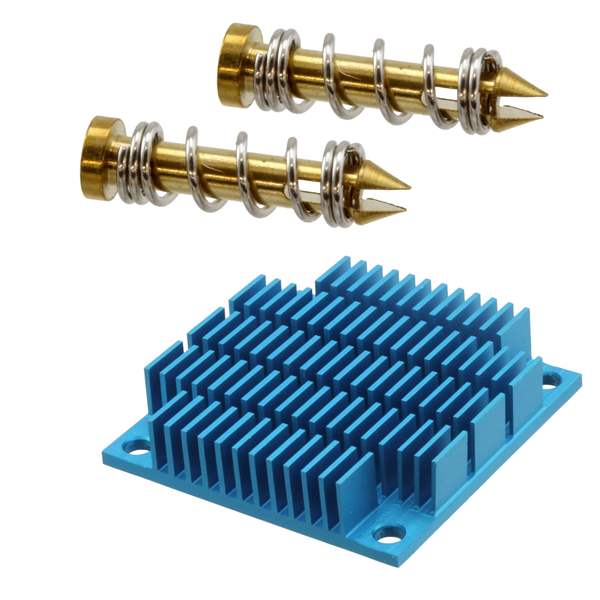

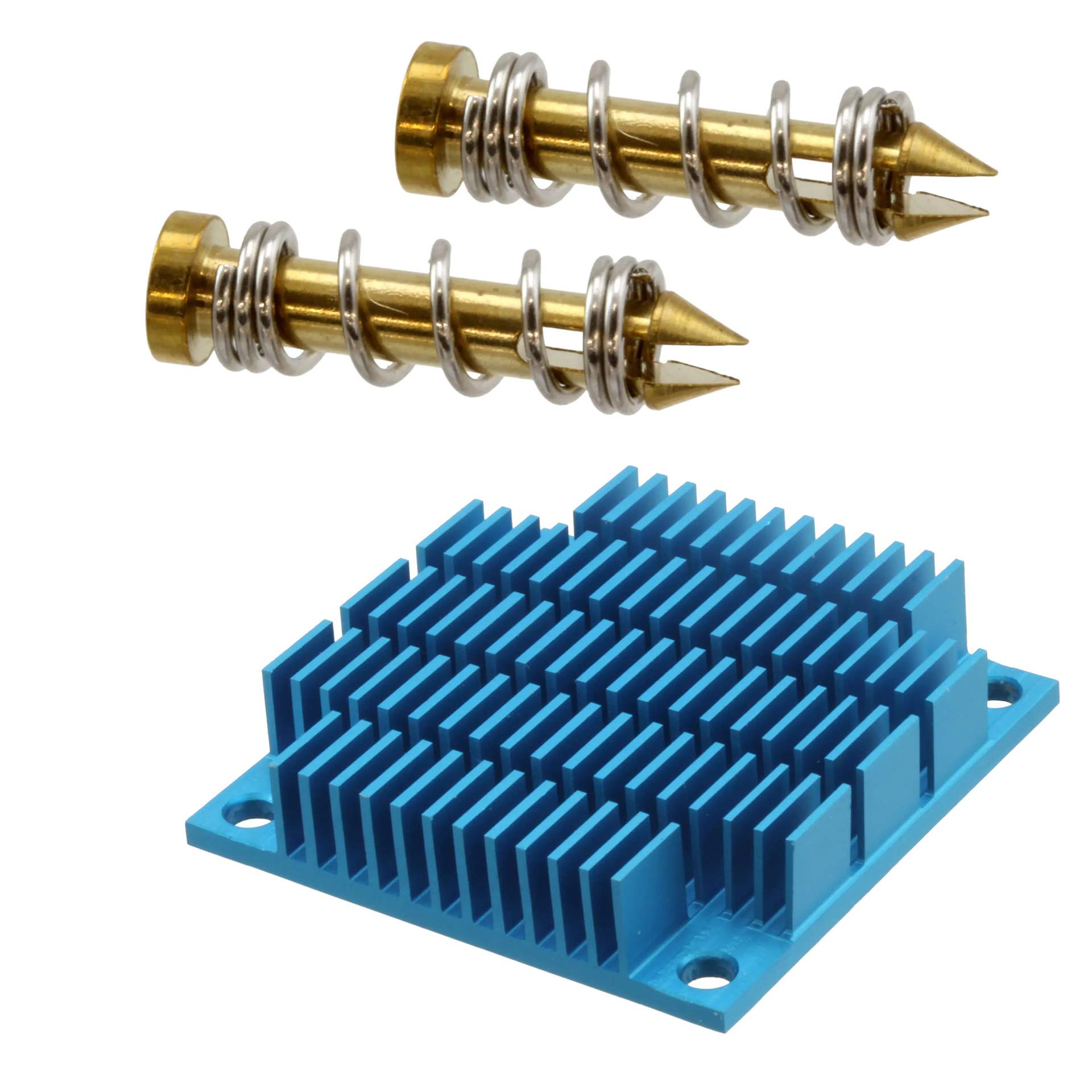

ATS-05E-97-C2-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-05E-97-C2-R0

Part No ATS-05E-97-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 45X45X10MM R-TAB T766 / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
ATS-05E-97-C2-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Tray
Product Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 1.772" (45.00mm)
Width 1.772" (45.00mm)
Fin Height 0.394" (10.00mm)
Thermal Resistance @ Forced Air Flow 20.30°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-05E
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 932873-ATS-05E-97-C2-R0
Ultra Librarian 3D Model Ultra Librarian ATS-05E-97-C2-R0 CAD Model

Description

The ATS-05E-97-C2-R0 is a pushPIN™ type heat sink designed for thermal management in electronic components. It is made of aluminum material with a square shape and fins for efficient heat dissipation.

  • Type: pushPIN™
  • Material: aluminum
  • Shape: square
  • Length: 1.772" (45.00mm)
  • Width: 1.772" (45.00mm)
  • Packages Cooled: BGA, LGA, CPU, ASIC
  • Attachment Method: push pin
  • Thermal Resistance: 20.30°C/W @ 100 LFM
  • Finish: blue anodized
  • Product Status: active
  • Manufacturer: Advanced Thermal Solutions Inc.
  • Fin Height: 0.394" (10.00mm)
