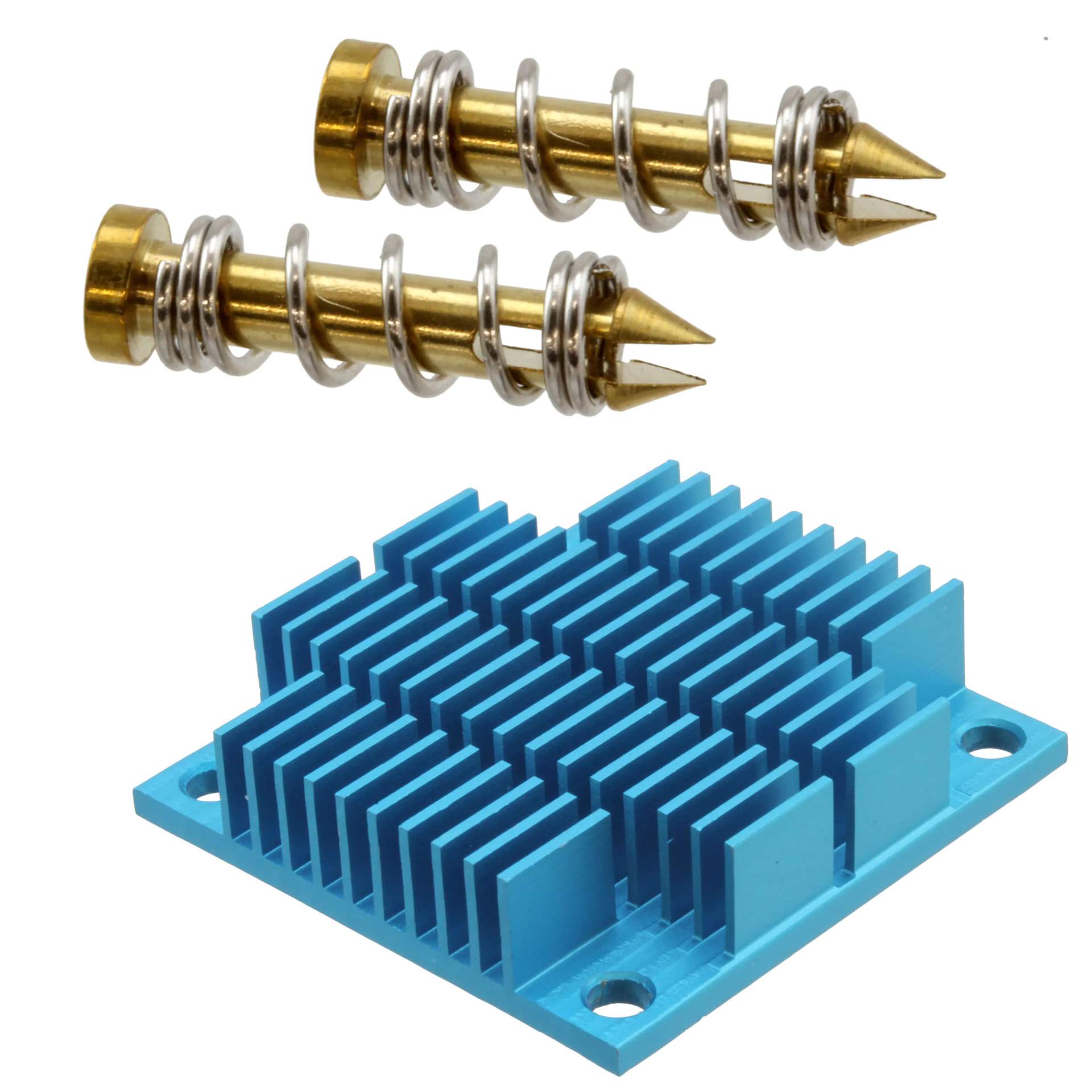

ATS-02F-194-C2-R0

Part No ATS-02F-194-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 40X40X10MM XCUT T766 / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
ATS-02F-194-C2-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Tray
Product Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 1.575" (40.00mm)
Width 1.575" (40.00mm)
Fin Height 0.394" (10.00mm)
Thermal Resistance @ Forced Air Flow 13.07°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-02F
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 901213-ATS-02F-194-C2-R0
Ultra Librarian 3D Model Ultra Librarian ATS-02F-194-C2-R0 CAD Model

Description

The pushPIN™ heat sink from Advanced Thermal Solutions Inc. is a top mount heat sink designed for effective thermal management in electronic components.

  • Length: 1.575" (40.00mm)
  • Width: 1.575" (40.00mm)
  • Suitable for Package Types: BGA, LGA, CPU, ASIC
  • Shape: Square, Fins
  • Finish: Blue Anodized
  • Attachment Method: Push Pin
  • Thermal Resistance: 13.07°C/W @ 100 LFM
  • Material: Aluminum
  • Series: ATS-02F
  • Product Status: Active
  • Fin Height: 0.394" (10.00mm)
