Same model may have multiple batches, images only for reference.

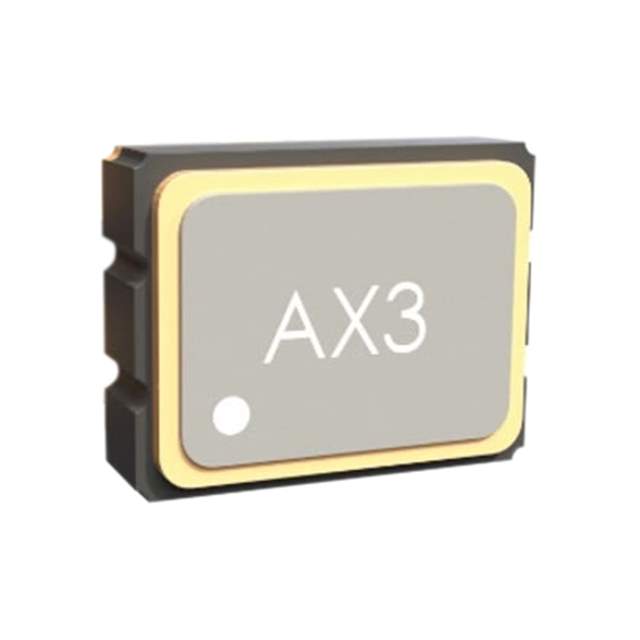

AX3DCF1-100.0000 Real Image
Same model may have multiple batches, images only for reference.

AX3DCF1-100.0000

Part No AX3DCF1-100.0000
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 100MHZ 1.8V LVDS / 100 MHz XO (Standard) LVDS Oscillator 1.8V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ClearClock™ AX3
Package Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 1.8V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 27mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043" (1.10mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1339158-AX3DCF1-100.0000
Ultra Librarian 3D Model Ultra Librarian AX3DCF1-100.0000 CAD Model

Description

The ClearClock™ AX3 XO is a high-quality oscillator that is perfect for use in a variety of electronic applications.

  • Frequency Stability: ±25ppm
  • Frequency: 100 MHz
  • Output: LVDS
  • Voltage - Supply: 1.8V
  • Mounting Type: Surface Mount
  • Package / Case: 6-SMD, No Lead
  • Packaging: Strip
  • Height - Seated (Max): 0.043" (1.10mm)
  • Function: Enable/Disable
  • Current - Supply (Max): 27mA
