Same model may have multiple batches, images only for reference.

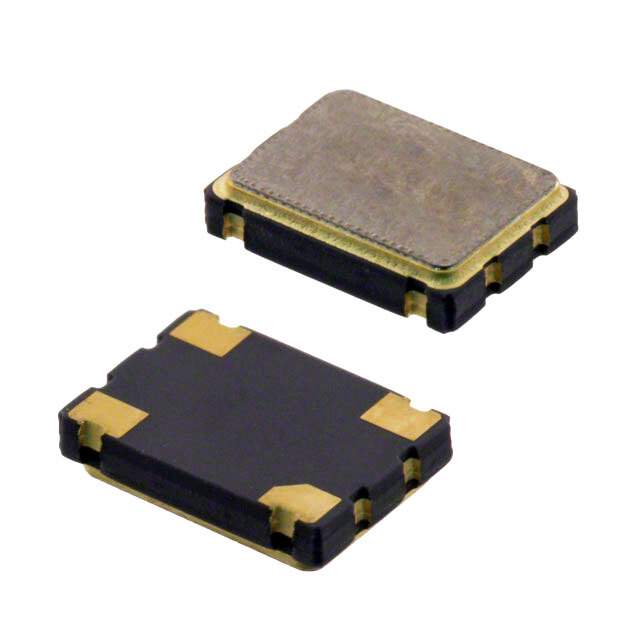

ASV-8.000MHZ-EJ-T Real Image
Same model may have multiple batches, images only for reference.

ASV-8.000MHZ-EJ-T

Part No ASV-8.000MHZ-EJ-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 8.0000MHZ HCMOS SMD / 8 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ASV-8.000MHZ-EJ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASV
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 8 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±20ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 10mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.200" W (7.00mm x 5.08mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 10µA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-9332-6,ASV-8.000MHZ-E-J-T,300-9332-1-ND,300-9332-2-ND,300-9332-1,300-9332-2,535-9332-1,535-9332-2,ASV8000MHZEJT
Standard Package 1,000
Win Source Part Number 1013394-ASV-8.000MHZ-EJ-T
Ultra Librarian 3D Model Ultra Librarian ASV-8.000MHZ-EJ-T CAD Model

Description

The Abracon LLC ASV-8.000MHZ-EJ-T is a crystal oscillator designed for use in circuits that require an 8 MHz frequency.

  • Frequency Stability: ±20 ppm
  • Package: 4-SMD, no lead package
  • Height: 1.80 mm
  • Width: 5.08 mm
  • Current Supply: 10 milliamperes
  • Current Supply (Disabled): 10 microamperes
  • Voltage Supply: 3.3 volts
