The CY7C1263V18-400BZC is a high-performance synchronous pipelined burst SRAM from Cypress Semiconductor. This SRAM is designed for applications requiring high bandwidth and low latency data access. It operates at a frequency of 400 MHz and is configured as 16Mb (512K x 32) device. The device integrates advanced features to optimize performance in demanding memory applications.

Applications

• Networking equipment: Routers, switches, and other networking devices.
• High-performance computing: Servers and workstations.
• Test and measurement equipment: Logic analyzers and oscilloscopes.
• Telecommunications: Base stations and communication infrastructure.
• Imaging and video processing systems.

Features

• High-speed clock frequency: Operates at 400 MHz.
• On-chip synchronous pipelined burst logic: Enables high data throughput.
• 512K x 32 memory organization: Provides a 16Mb storage capacity.
• Single 1.8V ±0.1V power supply: Reduces power consumption.
• LVTTL-compatible inputs and outputs: Simplifies interfacing with other system components.

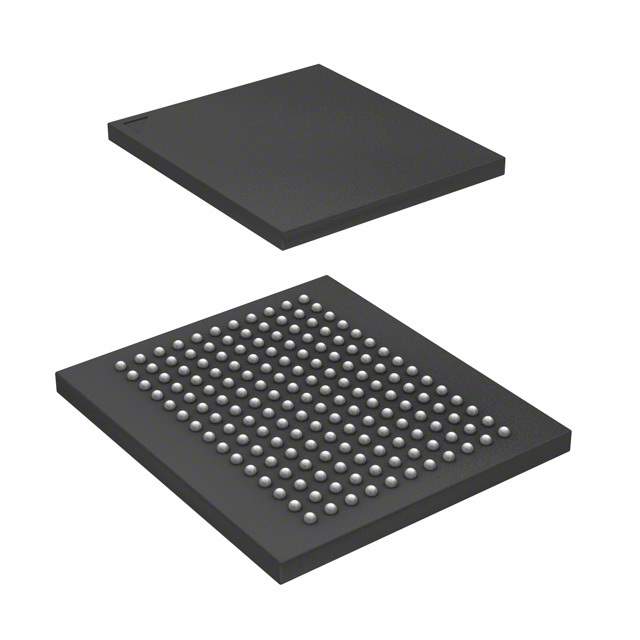

• Available in a 100-ball FBGA package: Enables high-density board mounting.
• Internal input resistors on address and control inputs: Reduces external component count.

Benefits

• High Bandwidth: The 400 MHz clock speed and pipelined architecture enable extremely high data transfer rates, which are crucial for bandwidth-intensive applications.
• Low Latency: Synchronous operation ensures minimal latency, enabling quick access to stored data, which is vital for real-time applications.
• Simplified System Design: LVTTL compatibility and internal resistors on inputs reduce the need for external components, simplifying the overall system design and reducing board space.
• Reduced Power Consumption: Single 1.8V supply reduces the power requirements, making it suitable for power-sensitive applications.
• Increased Reliability: Cypress's reputation for quality ensures a reliable component suitable for mission-critical systems.

Technical Specifications

The CY7C1263V18-400BZC SRAM operates with a single 1.8V power supply. It supports burst read and write operations, enabling efficient data transfer. The device is offered in a 100-ball FBGA package for easy integration into high-density PCB layouts. The synchronous pipelined burst architecture ensures compatibility with high-speed processors and data paths. This SRAM features an internal voltage regulator for stable operation and enhanced noise immunity. It is designed to meet the rigorous demands of high-performance computing and networking applications.
