Same model may have multiple batches, images only for reference.

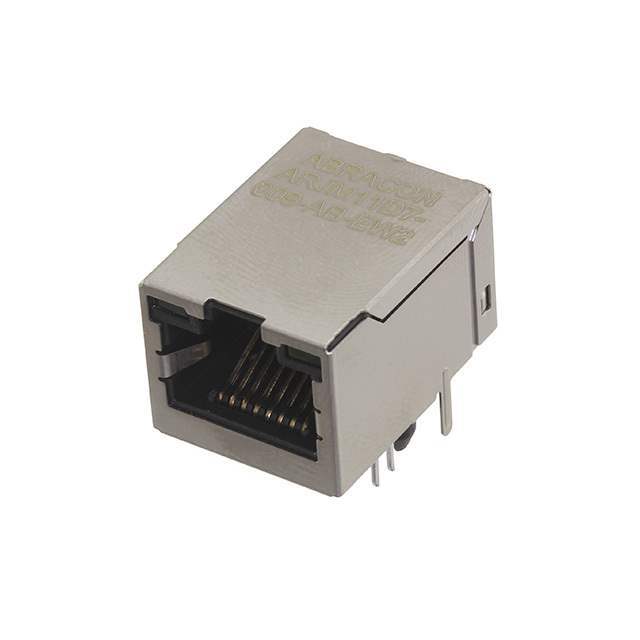

ARJM11D7-009-AB-EW2 Abracon LLC
Same model may have multiple batches, images only for reference.

ARJM11D7-009-AB-EW2

Part No ARJM11D7-009-AB-EW2
Manufacturer Abracon LLC
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB
Datasheet
ARJM11D7-009-AB-EW2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306462-ARJM11D7-009-AB-EW2
Category Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
Mfr Abracon LLC
Packaging  Tray
Part Status Active
Connector Type RJ45
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
Ultra Librarian 3D Model Ultra Librarian ARJM11D7-009-AB-EW2 CAD Model

Description

  • IEEE 802.3 compliant and UL certified
  • High performance integrated magnetics for EMI suppression
  • Suitable for CAT5 and CAT6 UTP cabling
  • RoHS peak wave solder temperature rating 265°C
  • Extended operating temperature -40 to 85°C option
