Same model may have multiple batches, images only for reference.

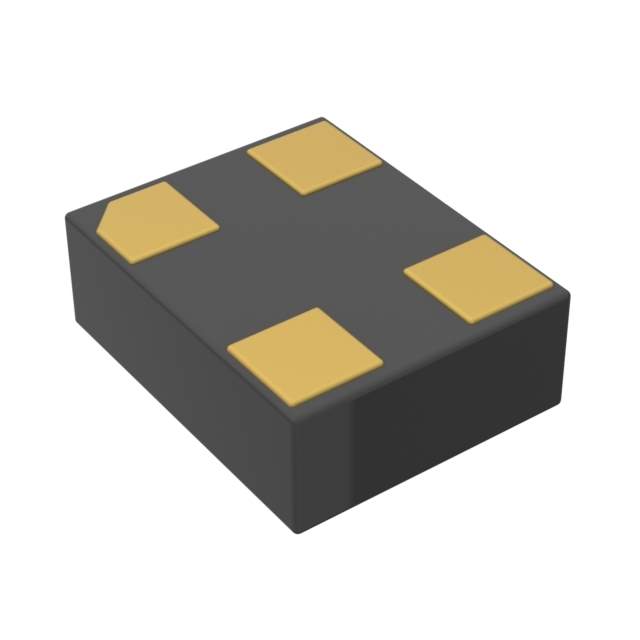

AMPMDEC-20.0000T3 Real Image
Same model may have multiple batches, images only for reference.

AMPMDEC-20.0000T3

Part No AMPMDEC-20.0000T3
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 20.0000MHZ CMOS SMD / 20 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-SMD, No Lead
Datasheet
AMPMDEC-20.0000T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMPM
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 20 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 1.3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.89mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1056738-AMPMDEC-20.0000T3
Ultra Librarian 3D Model Ultra Librarian AMPMDEC-20.0000T3 CAD Model

Description

This electronic component is an oscillator that falls under the category of crystals, oscillators, and resonators.

  • Win Source Part Number: 1056738-AMPMDEC-20.0000T3
  • Series: AMPM
  • Frequency: 20 MHz
  • Package: Tape and Reel
  • Height: 0.035 inches
