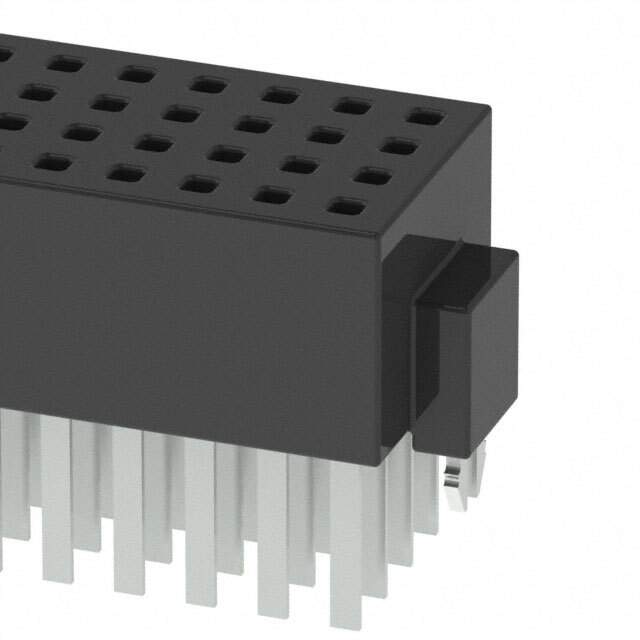

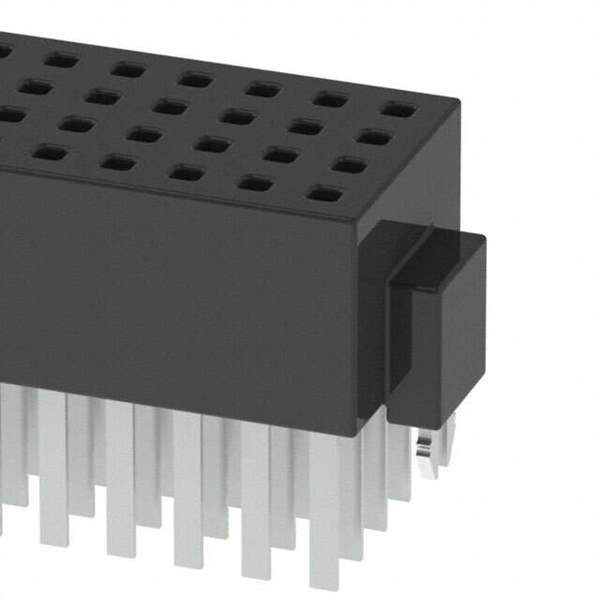

FOLC-135-04-S-Q-LC

Name: FOLC-135-04-S-Q-LC
Brand: Samtec Inc.
SKU: 1000224
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FOLC-135-04-S-Q-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 140POS 0.05 GOLD PCB / 140 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Datasheet	FOLC-135-04-S-Q-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	FOURRAY™ FOLC
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	140
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	4
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Lock
Current Rating (Amps)	2.6A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	FOLC-135
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM11215,FOLC-135-04-S-Q-LC-ND
Standard Package	12
Win Source Part Number	1000224-FOLC-135-04-S-Q-LC
Ultra Librarian 3D Model	Ultra Librarian FOLC-135-04-S-Q-LC CAD Model

Alternative Products

Description

The Samtec Inc. FOURRAY™ FOLC FOLC-135-04-S-Q-LC is a board to board connector.

Positions: 140
Feature: Board lock
Supply and Demand: Shortage
Material: Beryllium copper
Contact Finish: Gold
Current Rating: 2.6A per contact
Operating Temperature Range: -55°C to 125°C
ECCN: EAR99 compliant
REACH: REACH unaffected
