Same model may have multiple batches, images only for reference.

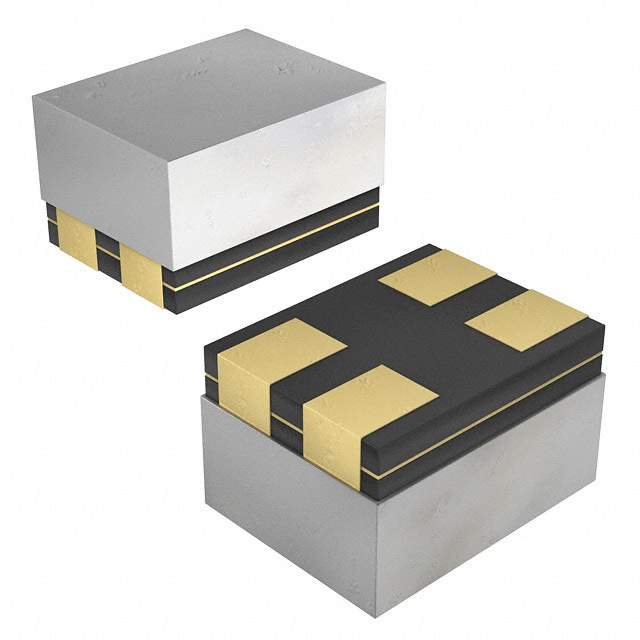

ACMF-03-300-T Real Image
Same model may have multiple batches, images only for reference.

ACMF-03-300-T

Part No ACMF-03-300-T
Manufacturer Abracon LLC
Catalog Common Mode Chokes
Description CMC 100MA 2LN 30 OHM SMD
Datasheet
ACMF-03-300-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Abracon LLC
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 30 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 1.5 Ohm (Typ)
Temperature Range - Operating -55°C to 150°C
Mounting SMD (SMT)
Height (Max) 0.022" (0.55mm)
Dimension 0302 (0806 Metric), 4 Lead
Win Source Part Number 104005-ACMF-03-300-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACMF-03-300-T CAD Model

Description

Product Overview

The ACMF-03-300-T is a compact and efficient filter designed for minimizing noise and interference in electronic circuits, perfect for ensuring device stability and performance.

Applications

  • Audio equipment and circuits
  • Industrial automation systems
  • Telecommunication devices

Features and Benefits

  • Effective Noise Reduction: Significantly reduces electromagnetic interference in sensitive devices.
  • Easy Installation: Simple to integrate into existing systems, saving time on setups.
  • Durable Construction: Built to last, providing long-term reliability in various environments.

Additional Details

The ACMF-03-300-T's user-friendly design and efficiency make it an ideal solution for engineers focused on high-quality device performance and stability.
