Same model may have multiple batches, images only for reference.

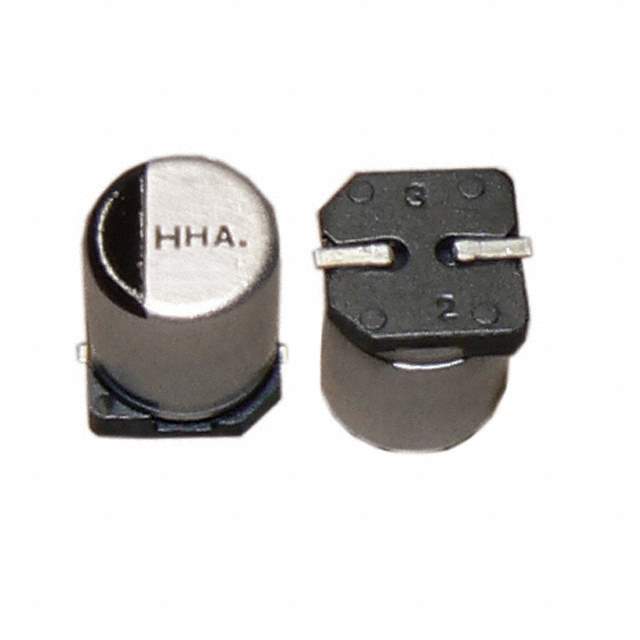

AHA336M50E16T-F Real Image
Same model may have multiple batches, images only for reference.

AHA336M50E16T-F

Part No AHA336M50E16T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 50V SMD / Cap Aluminum Lytic 33uF 50V 20% (8 X 6.2mm) SMD 6 Ohm 70mA 2000h 105°C Automotive T/R
Datasheet
AHA336M50E16T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AHA
Packaging Reel package
Capacitance 33μF
Tolerance ±20%
Voltage Rating DC 50V
ESR (Equivalent Series Resistance) 6 Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 70mA @ 120Hz
Ripple Current - High Frequency 119mA @ 10kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.244" (6.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777747-AHA336M50E16T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AHA
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHA336M50E16T-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) AHA336M50E16T-F capacitor is a radial, can-type surface mount device that is designed for general applications.

  • Capacitance: 33μF
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 6 Ohm @ 120Hz
  • Ripple Current (Low Frequency): 70mA @ 120Hz
  • Ripple Current (High Frequency): 119mA @ 10kHz
  • Polarized: Yes
  • Voltage Rating: 50V DC
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Dimension: 0.315" Dia (8.00mm)
  • Lifetime: 2000 Hrs @ 105°C
  • Height: 0.244" (6.20mm)
  • Packaging: Reel
  • Introduction Date: March 05, 2002
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
