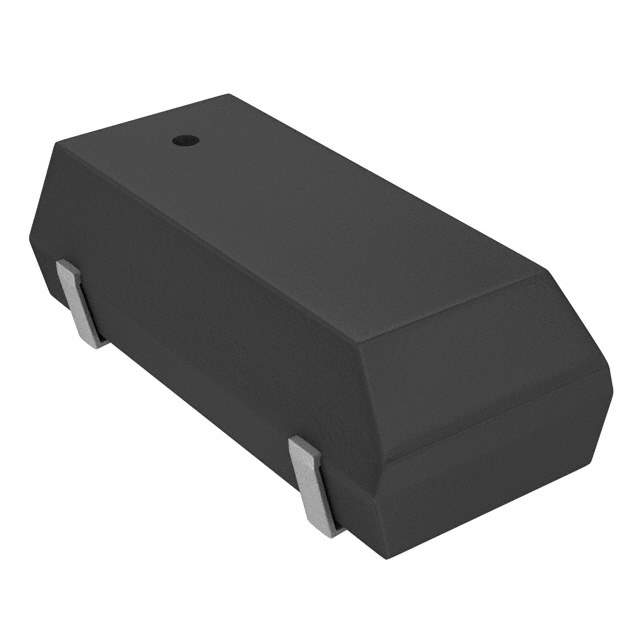

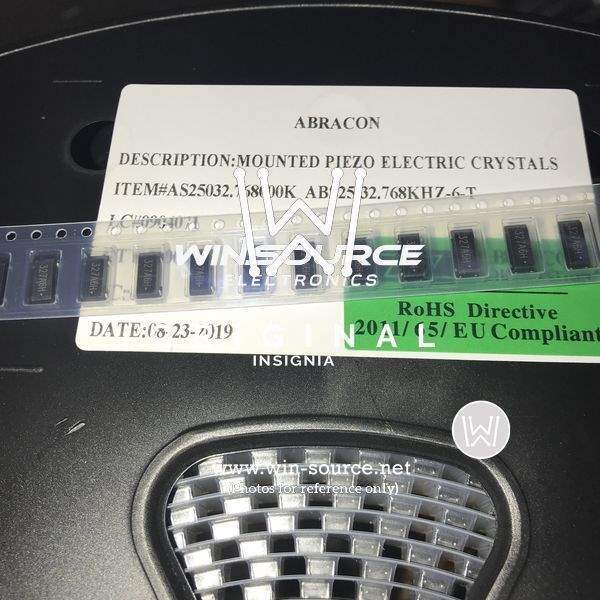

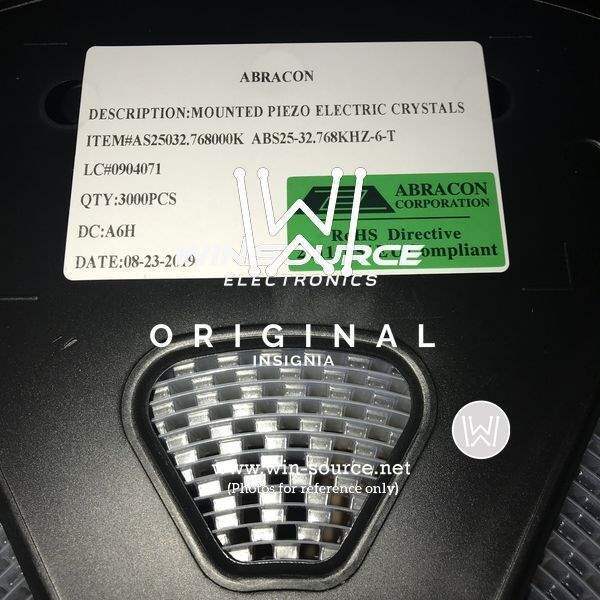

ABS25-32.768KHZ-6-T Real Image1 ABS25-32.768KHZ-6-T Real Image2 ABS25-32.768KHZ-6-T label picture ABS25-32.768KHZ-6-T real image ABS25-32.768KHZ-6-T real image17062
Same model may have multiple batches, images only for reference.
ABS25-32.768KHZ-6-T Real Image1 ABS25-32.768KHZ-6-T Real Image2 ABS25-32.768KHZ-6-T label picture ABS25-32.768KHZ-6-T real image ABS25-32.768KHZ-6-T real image17062
ABS25-32.768KHZ-6-T Real Image1 ABS25-32.768KHZ-6-T Real Image2 ABS25-32.768KHZ-6-T label picture ABS25-32.768KHZ-6-T real image ABS25-32.768KHZ-6-T real image17062
Same model may have multiple batches, images only for reference.

ABS25-32.768KHZ-6-T

Part No ABS25-32.768KHZ-6-T
Manufacturer Abracon LLC
Catalog Crystals
Description 32.768 kHz LOW FREQUENCY SMD CRYSTAL
Datasheet
ABS25-32.768KHZ-6-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Series ABS25
Packaging Reel - TR
Type kHz Crystal (Tuning Fork)
Frequency 32.768kHz
Frequency Tolerance ±20ppm
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 50 kOhm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 4-SOJ, 5.50mm pitch
Size 0.315" L x 0.150" W (8.00mm x 3.80mm)
Height - Seated (Maximum) 0.098" (2.50mm)
Win Source Part Number 1135065-ABS25-32.768KHZ-6-T
Manufacturer Homepage www.abracon.com/index.htm
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Communications & Networking, Industrial, Commercial, Clock & Timing, Test & Measurement
Family Name ABS25
Introduction Date May 09, 2002
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ABS25-32.768KHZ-6-T CAD Model

Description

The ABS25-32.768KHZ-6-T oscillator is a product of Abracon LLC.

  • Series: ABS25 series
  • Category: crystals, oscillators, and resonators
  • Type: kHz crystal (tuning fork)
  • Frequency: 32.768kHz
  • Package: 4-SOJ, 5.50mm pitch package
  • Mounting Type: SMD
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 6pF
  • Operating Temperature Range: -40°C to 85°C.
