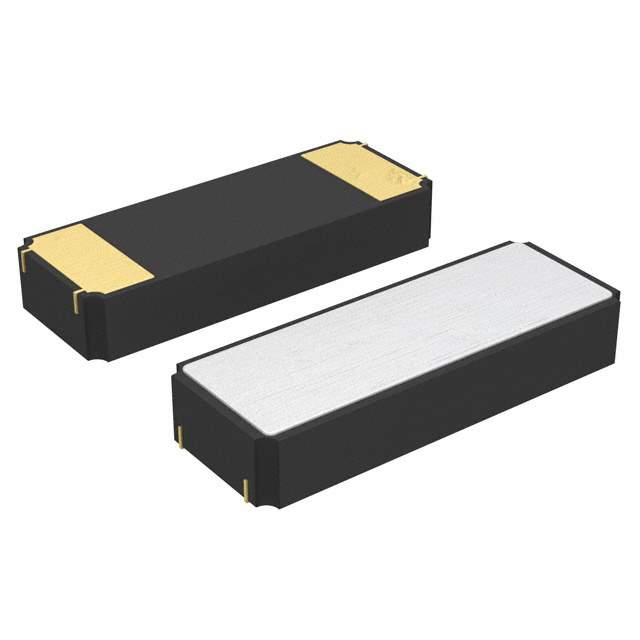

ABS10-32.768KHZ-9-T

Part No ABS10-32.768KHZ-9-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 9PF SMD / 32.768 kHz ±20ppm Crystal 9pF 70 kOhms 2-SMD, No Lead
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABS10
Package Tape & Reel
Product Status Obsolete
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.190" L x 0.070" W (4.90mm x 1.80mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Other Names 535-9538-6,535-9538-2,ABS1032768KHZ9T,535-9538-1
Standard Package 3,000
Win Source Part Number 1124786-ABS10-32.768KHZ-9-T
Ultra Librarian 3D Model Ultra Librarian ABS10-32.768KHZ-9-T CAD Model

Description

ABS10-32.768KHZ-9-T from Abracon LLC is a crystal component commonly considered for low-frequency timing applications where stable clock reference is important, such as real-time clock functions, portable electronics, utility metering, embedded control, and battery-powered designs. In the crystals category, parts in this class are typically selected to support accurate timekeeping while helping designers manage power consumption and board space requirements. For sourcing teams and design engineers, this part may be relevant when evaluating timing components for long-life or cost-sensitive products, especially where 32.768 kHz references are standard in system architecture. The current lifecycle status for ABS10-32.768KHZ-9-T is listed as unknown, so teams should verify production status directly with Abracon LLC or an authorized distributor before locking it into new designs. RoHS compliance information is not available in the provided data, and engineers should confirm the latest environmental compliance details through the official datasheet, manufacturer declaration, or distributor compliance documentation.
