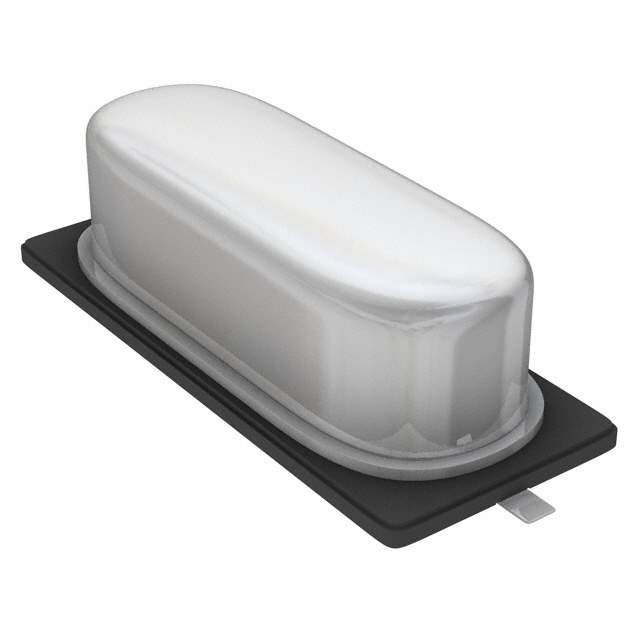

ABLS2-14.7456MHZ-D4Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS2-14.7456MHZ-D4Y-T

Part No ABLS2-14.7456MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 14.7456MHZ 18PF SMD / 14.7456 MHz ±30ppm Crystal 18pF 50 Ohms HC-49/US
Datasheet
ABLS2-14.7456MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS2
Package Tape & Reel
Type MHz Crystal
Frequency 14.7456 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.130" (3.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names ABLS2147456MHZD4YT,535-9873-1,535-9873-2,Q7347292,535-9873-6
Standard Package 1,000
Win Source Part Number 1027113-ABLS2-14.7456MHZ-D4Y-T
Ultra Librarian 3D Model Ultra Librarian ABLS2-14.7456MHZ-D4Y-T CAD Model

Description

The ABLS2-14.7456MHZ-D4Y-T is a MHz crystal from Abracon LLC.

  • Package: tape and reel
  • Units per package: 1,000
  • Frequency: 14.7456 MHz
  • ESR (Equivalent Series Resistance): 50 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Height-Seated (Max): 0.130" (3.30mm)
  • Dimension: 0.449" L x 0.185" W (11.40mm x 4.70mm)
  • Operating Temperature Range: -40°C ~ 85°C
  • Mounting Type: SMD (SMT)
