Same model may have multiple batches, images only for reference.

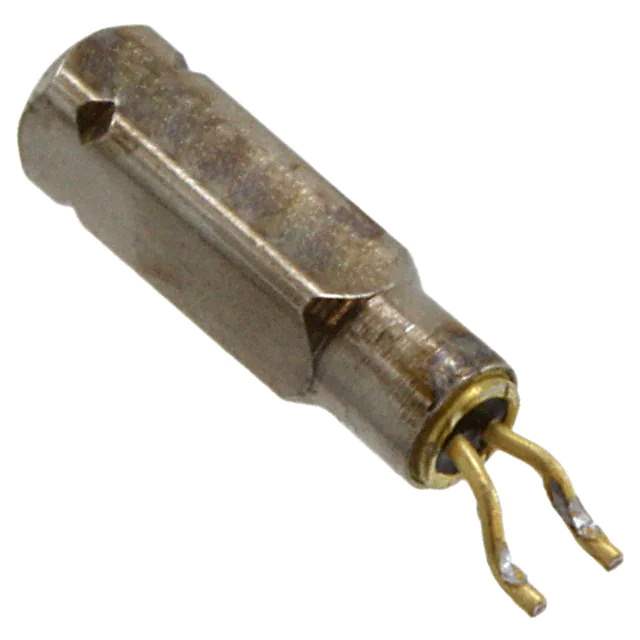

AB26TRQ-32.768KHZ-T Real Image
Same model may have multiple batches, images only for reference.

AB26TRQ-32.768KHZ-T

Part No AB26TRQ-32.768KHZ-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 50 kOhms Cylindrical Can, Radial
Datasheet
AB26TRQ-32.768KHZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series AB26TRQ
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 50 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case Cylindrical Can, Radial
Size / Dimension 0.264" L x 0.055" W (6.70mm x 1.40mm)
Height - Seated (Max) 0.058" (1.48mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 849325-AB26TRQ-32.768KHZ-T
Ultra Librarian 3D Model Ultra Librarian AB26TRQ-32.768KHZ-T CAD Model

Description

The 849325-AB26TRQ-32.768KHZ-T is a kHz crystal (tuning fork) manufactured by Abracon LLC.

  • Series: AB26TRQ
  • Package: Tape & Reel
  • Size: 0.264" L x 0.055" W (6.70mm x 1.40mm)
  • Seated Height: 0.058" (1.48mm)
  • Standard Package: 2,000 pieces
  • Frequency: 32.768 kHz
  • ESR: 50 kOhms
  • Mode: Fundamental
  • Frequency Tolerance: ±20ppm
  • Temperature Range: -40°C to 85°C
  • Mounting: Surface Mount
  • Package / Case: Cylindrical Can, Radial
  • REACH: Unaffected
