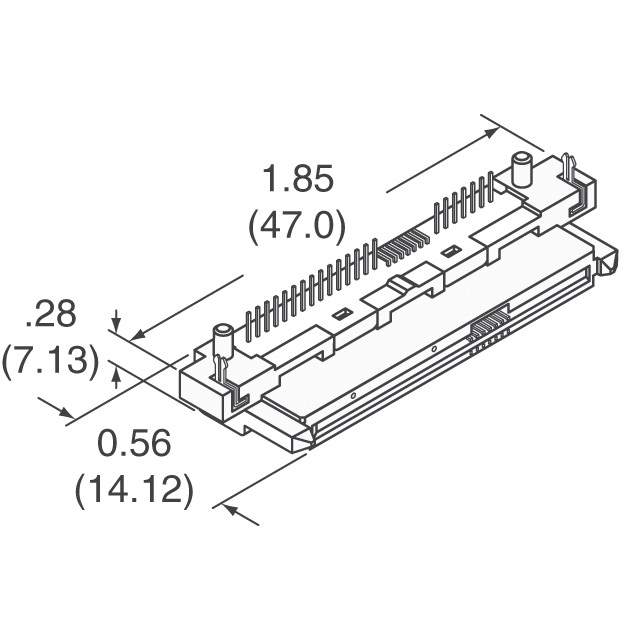

SBR-RA-29-S-ML Real Image
Same model may have multiple batches, images only for reference.

SBR-RA-29-S-ML

Part No SBR-RA-29-S-ML
Manufacturer 3M
Catalog Pluggable Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr 3M
Series SBR
Package Tray
Product Status Obsolete
Connector Style Receptacle
Connector Type SAS
Number of Positions 29
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Other Names -3M5489,SBRRA29SML,51111742716,3M5489,-3M5489,XE004219798,-SBR-RA-29-S-ML,00051111742716,5111174271
Standard Package 3,800
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294048-SBR-RA-29-S-ML
Ultra Librarian 3D Model Ultra Librarian SBR-RA-29-S-ML CAD Model

Description

This is an SBR series SAS pluggable connector with a receptacle connector style.

  • Positions: 29
  • Contact Finish: Gold
  • Termination: Solder
  • Mounting Type: Through-Hole, Right-Angle
  • Package: Tray
  • Operating Temperature: -40 to 105 degrees Celsius
  • Current Rating: 3.0A
  • Description: The connector is a reliable and durable solution for your SAS needs.
