Same model may have multiple batches, images only for reference.

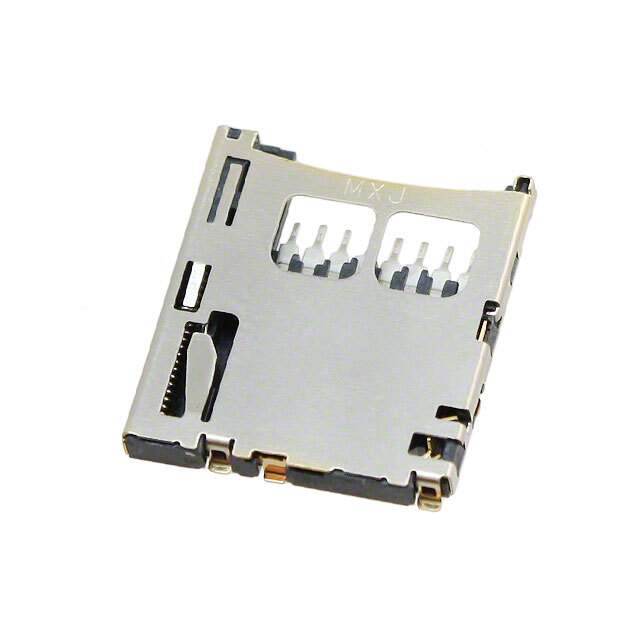

5025700893 Real Image
Same model may have multiple batches, images only for reference.

5025700893

Part No 5025700893
Manufacturer Molex, LLC
Catalog Memory Connectors - PC Card Sockets
Description CONN MICRO SD CARD PUSH-PUSH R/A / 1.10mm (.043") Pitch microSD Memory Card Connector, Normal Mount SMT, Push- Push Type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Reel
Card Type Secure Digital - microSD
Number of Positions 10 (8 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Style Surface Mount, Right Angle
Features Switch
Height Above Board 0.071" (1.80mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 20.0μin (0.51μm)
Manufacturer Pack Quantity 1,300
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801774-5025700893
Ultra Librarian 3D Model Ultra Librarian 5025700893 CAD Model

Description

The 801774-5025700893 from Molex is a surface mount, right-angle connector with a switch feature.

  • Rows: Single
  • Positions: 10 (8 + 2)
  • Connector Type: Connector and Ejector
  • Contact Finish Thickness: 20.0μin (0.51μm)
  • Height Above Board: 0.071" (1.80mm)
  • Card Type: microSD
