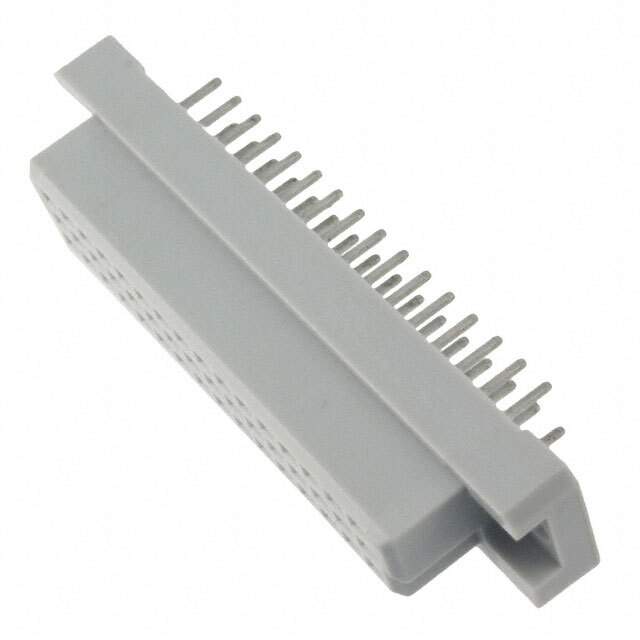

DIN-032CSB-S1L-HM Real Image
Same model may have multiple batches, images only for reference.

DIN-032CSB-S1L-HM

Part No DIN-032CSB-S1L-HM
Manufacturer 3M
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB GOLD / 48 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Manufacturer 3M
Packaging Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded 32
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Mounting Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 3A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Base Product Number DIN-032C
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 05111994188,00051119941883,5111994188,7010501815,DIN032CSBS1LHM,-DIN-032CSB-S1L-HM,DIN-032CSB-S1L-HM-ND,3M10884,80001221979,51119941883
Standard Package 1,152
Win Source Part Number 1333127-DIN-032CSB-S1L-HM
Ultra Librarian 3D Model Ultra Librarian DIN-032CSB-S1L-HM CAD Model

Description

The 3M DIN 41612 connector is a 48-position, 0.100-inch pitch receptacle that is designed for use in backplane connectors.

  • Positions Loaded: 32
  • Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass-Filled
  • Termination: Soldered
  • Contact Finish: Gold with a thickness of 3.00μin (0.076μm)
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Current Rating: 3A
  • Temperature Range: -55°C to 125°C
