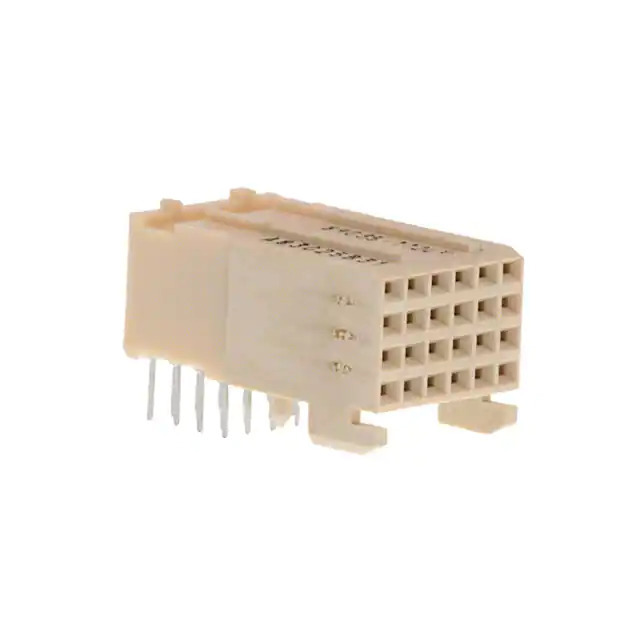

89035-112LF Amphenol
Same model may have multiple batches, images only for reference.

89035-112LF

Part No 89035-112LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RCPT 24POS EDGE MNT / 24 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Amphenol ICC (FCI)
Series Metral®
Package Tube
Product Status Active
Connector Usage -
Connector Type Receptacle, Female Sockets
Connector Style -
Number of Positions 24
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 4
Number of Columns -
Mounting Type Board Edge, Through Hole, Right Angle
Termination Solder
Contact Layout, Typical -
Features Board Guide, Spacer
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Natural
Current Rating (Amps) 1A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Voltage Rating 1000V
Base Product Number 89035
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364512-89035-112LF
Ultra Librarian 3D Model Ultra Librarian 89035-112LF CAD Model

Description

The 1364512-89035-112LF is a specialized backplane connector from Amphenol ICC (FCI) Metral® series.

  • Series: Metral®
  • Mounting Type: Board Edge, Through Hole, Right Angle
  • Temperature Range: -55°C to 105°C
  • Current Rating: 1A
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Color: Natural
  • Flammability Rating: UL94 V-0
  • Connector Gender: Receptacle
  • Contact Gender: Female Sockets
  • Positions: 24
  • Rows: 4
  • Voltage Rating: 1000V
  • Pitch: 0.079" (2.00mm)
  • Termination Method: Solder
  • HTSUS Code: 8536.69.4040
  • RoHS Compliance: Yes
  • ECCN: EAR99
