Same model may have multiple batches, images only for reference.

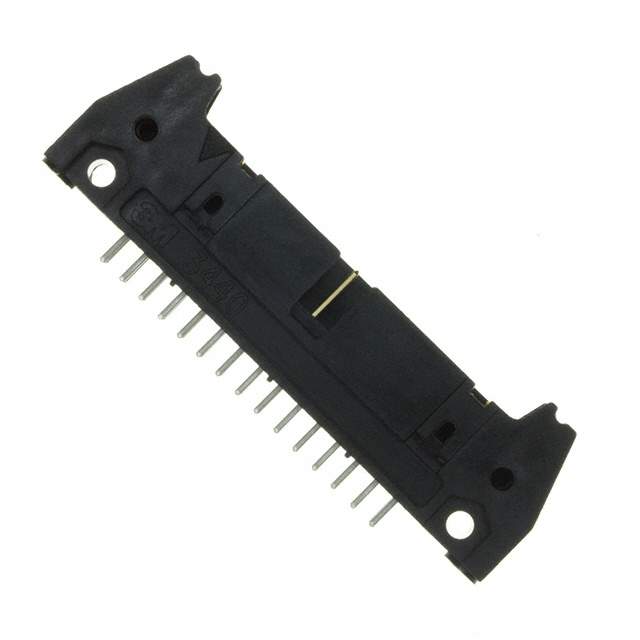

D3440-6002-AR Real Image
Same model may have multiple batches, images only for reference.

D3440-6002-AR

Part No D3440-6002-AR
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HDR 30POS STR NO LATCH 10AU / Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Box
Datasheet
D3440-6002-AR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series D3000
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 30
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.112" (2.84mm)
Overall Contact Length 0.652" (16.56mm)
Insulation Height 0.680" (17.27mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot, Mounting Flange
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1.75A
Contact Finish Thickness - Post 39μin (1.00μm)
Win Source Part Number 772305-D3440-6002-AR
Popularity Medium
Supply and Demand Status Limited
Family Name D3000
Introduction Date December 20, 2007
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian D3440-6002-AR CAD Model

Description

The 772305-D3440-6002-AR is a D3000 series header connector IC from 3M.

  • Series: D3000
  • Packaging: Tray
  • Positions: 30
  • Mounting Style: Through Hole
  • Operating Temperature Range: -55°C ~ 105°C
  • Features: Keying slot, Mounting Flange
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Brass
  • Current Rating: 1.75A
  • Flammability Rating: UL94 V-0
  • Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Style: Board to Cable/Wire
  • Pitch - Mating: 0.100" (2.54mm)
  • Contact Finish - Mating: Gold (10μin / 0.25μm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 39μin (1.00μm)
  • Shrouding: Shrouded - 4 wall
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Contact Length - Post: 0.112" (2.84mm)
  • Overall Contact Length: 0.652" (16.56mm)
  • Insulation Height: 0.680" (17.27mm)
  • Contact Shape: Square
  • Contact Length - Mating: 0.240" (6.10mm)
  • Alternative Parts: 86130308024355E1LF, 86130302024385E1LF, 86130302014385E1LF, 86130308014365E1LF
  • ECCN: EAR99
  • Estimated EOL Date: 2025
  • Supply and Demand: Limited
