D2520-6002-AR

Part No D2520-6002-AR
Manufacturer 3M
Catalog Rectangular Connectors

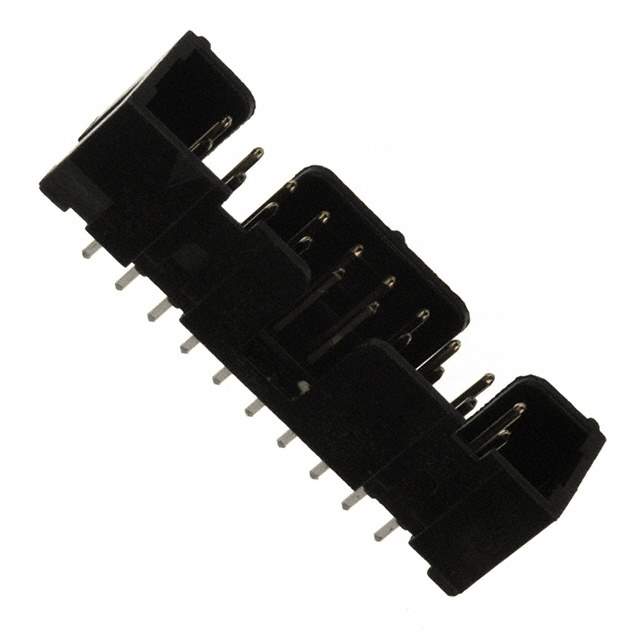

Description CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series D2500
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.243" (6.17mm)
Contact Length - Post 0.112" (2.84mm)
Overall Contact Length 0.492" (12.50mm)
Insulation Height 0.253" (6.43mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1.75A
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number D2520
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 5111990715,MHC20E,00051119907155,7010347795,D25206002AR,80001204421,XP000004075,51119907155,05111990715
Standard Package 504
Win Source Part Number 1117550-D2520-6002-AR
Ultra Librarian 3D Model Ultra Librarian D2520-6002-AR CAD Model

Description

The 1117550-D2520-6002-AR is a high-quality connector that is designed to meet the highest standards of quality and reliability. This product is manufactured by 3M, a well-known brand in the industry. The product is designed for board to cable/wire applications and features a keying slot for easy identification. The product is made from high-quality materials that ensure its durability and long-lasting performance. The product is suitable for use in a variety of applications, including industrial and commercial settings. The product is available in limited supply, so make sure to get your hands on it before it runs out.
