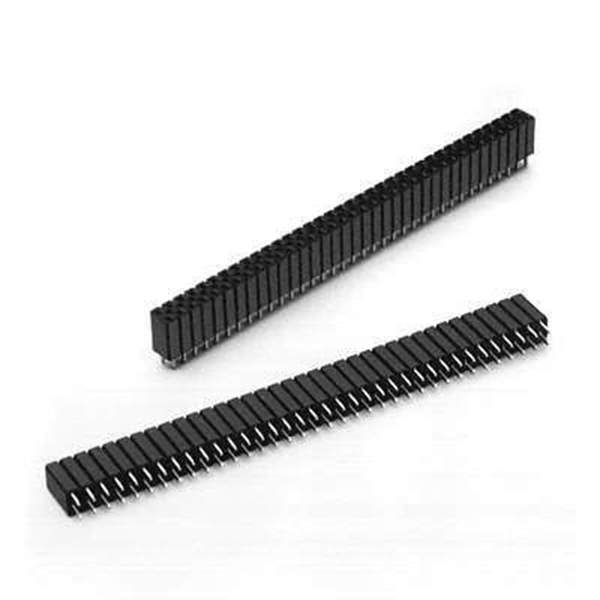

929975-01-04-RK Real Image
Same model may have multiple batches, images only for reference.

929975-01-04-RK

Part No 929975-01-04-RK
Manufacturer 3M
Catalog Rectangular Connectors
Description 3M BOARDMOUNT SOCKET, 929 SERIES / 8 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr 3M
Series 929
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Insulation Color Black
Insulation Height 0.325" (8.25mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2A
Voltage Rating 1500V
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT) , Polyester, Glass Filled
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 929975
Standard Package 900
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340033-929975-01-04-RK
Ultra Librarian 3D Model Ultra Librarian 929975-01-04-RK CAD Model

Description

The 3M 929 series receptacle female sockets are rectangular connectors with a pitch of 0.100 inches (2.54 mm) and 8 positions.

  • Connector Type: Receptacle
  • Contact Type: Forked
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 8
  • Mounting Type: Through Hole
  • Fastening Type: Push-Pull
  • Contact Finish Thickness - Mating: Tin
  • Insulation Height: 0.325" (8.25mm)
  • Termination: Solder
  • Contact Shape: Square
  • Contact Material: Copper Alloy
  • Voltage Rating: 1500V
  • Current Rating (Amps): 2A
  • Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Insulation Color: Black
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Operating Temperature: -40°C ~ 105°C
  • Series: 929
  • Applications: Board to Board
  • Manufacturer: 3M
