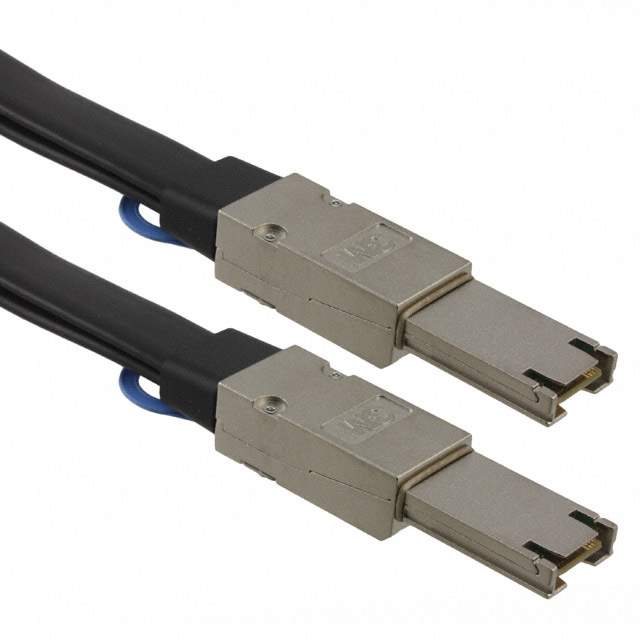

8G26-0A-CB1-00-1.00 Real Image
Same model may have multiple batches, images only for reference.

8G26-0A-CB1-00-1.00

Part No 8G26-0A-CB1-00-1.00
Manufacturer 3M
Catalog Pluggable Cables
Description CABLE MINISAS 4X M-M 1M / 26 Position miniSAS 4x Plug to Plug 3.28' (1.00m) Black Shielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Pluggable Cables
Mfr 3M
Series 8G26
Package Bulk
Cable Connectors miniSAS 4x
Number of Positions 26
Connector Type Plug to Plug
Gender Male to Male
Fastening Type Latch Lock, Push-Pull
Features Key Slot 2-4 to Key Slot 4-6, Pull Tab
Cable Type Flat, Twin Axial
Usage External
Length 3.28' (1.00m)
Color Black
Shielding Shielded
Wire Gauge 30 AWG
Frequency - Max 6Gbps
Temperature Range - Operating -20°C ~ 80°C
Base Product Number 8G26
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8544.42.9090
Other Names 3M10732,8G260ACB100100,50076308099843,7010506957,76308099843,XP200020178
Standard Package 1
Win Source Part Number 1164319-8G26-0A-CB1-00-1.00
Ultra Librarian 3D Model Ultra Librarian 8G26-0A-CB1-00-1.00 CAD Model

Description

The 3M 1164319-8G26-0A-CB1-00-1.00 is a pluggable cable assembly that has a length of 3.28' (1.00m) and consists of male to male connectors.

  • Length: 3.28' (1.00m)
  • Connectors: Male to Male
  • Cable Type: Flat, Twin Axial
  • Shielding: Shielded
  • Usage: External
  • Cable Compatibility: miniSAS 4x
  • Frequency: Max 6Gbps
  • Wire Gauge: 30 AWG
  • Packaging: Bulk
  • Applications: Data Storage, Servers, Network Switches
  • ECCN: EAR99
  • HTSUS: 8544.42.9090
  • Manufacturer: 3M
  • Product Name: 1164319-8G26-0A-CB1-00-1.00
