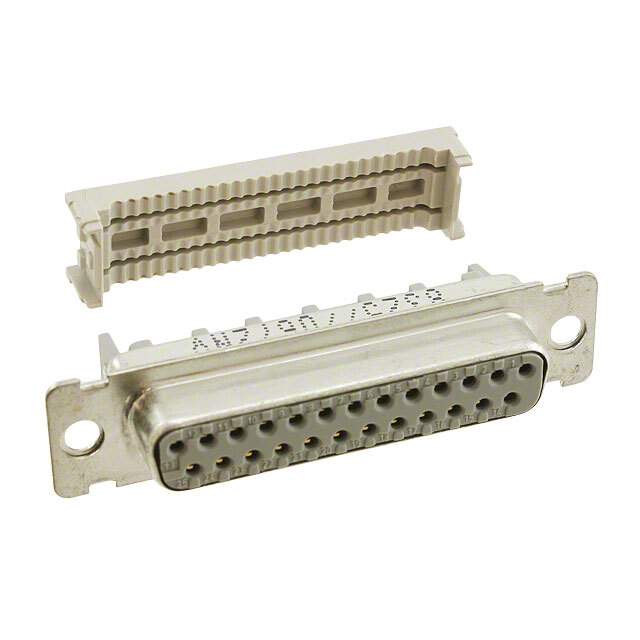

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr 3M
Series 8300
Package Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Panel Mount
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Features Feed Through
Color Gray
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Wire Gauge 26-28 AWG
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 8325
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 83258000,04046719031252,DE610012838,05113842412,3M11962,4671903125,8325-8000-ND,DE610007101,7100088413,UU004887384,4046719031252
Standard Package 100
Win Source Part Number 1119768-8325-8000
Ultra Librarian 3D Model Ultra Librarian 8325-8000 CAD Model

Description

The 8300 series by 3M is a D-Sub connector that has 25 positions.

  • Series: 8300
  • Positions: 25
  • Color: Gray
  • Features: Feed-through
  • Connector Type: Receptacle with female sockets
  • Contact Type: Signal
  • Rows: Two
  • Termination: IDC ribbon cable
  • Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
  • Package: Bulk
  • Standard Package: 100
  • RoHS: Compliant
  • ECCN: EAR99
  • Current Rating: 1A
  • Operating Temperature Range: -55°C ~ 105°C
  • Suitable for: Panel mount applications
