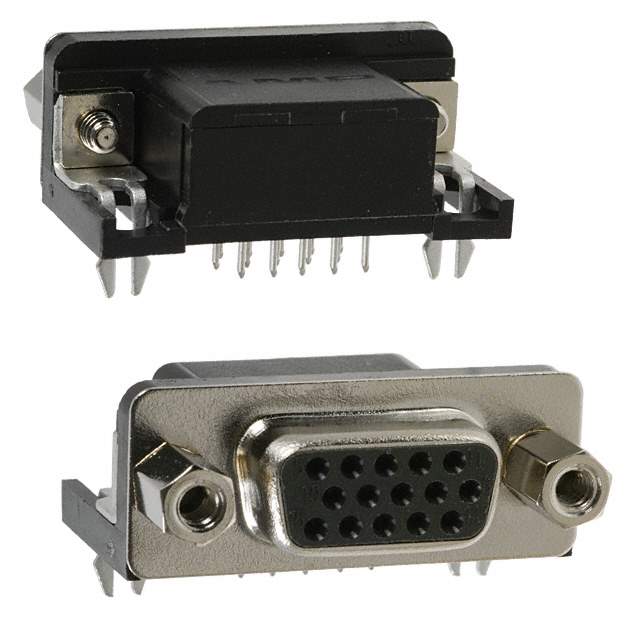

1734344-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-22
Package Tube
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Backset Spacing 0.350" (8.89mm)
Features Board Lock
Voltage Rating 125V
Color Black
Dielectric Material Polyamide (PA9T), Nylon 9T
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 130°C
Base Product Number 1734344
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A35121
Standard Package 850
Win Source Part Number 1229898-1734344-5
Ultra Librarian 3D Model Ultra Librarian 1734344-5 CAD Model

Description

The AMPLIMITE HD-22 series 15-position D-Sub connector is a female receptacle with black color and a board lock feature.

  • Series: AMPLIMITE HD-22
  • Positions: 15
  • Connector Type: D-Sub
  • Gender: female receptacle
  • Color: black
  • Feature: board lock
  • Contact Type: signal
  • Rows: 3
  • Termination: solder
  • Contact Finish: gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Connector Style: D-Sub, High Density
  • Voltage Rating: 125V
  • Shell Material: steel
  • Shell Plating: nickel
  • Dielectric Material: Polyamide (PA9T), Nylon 9T
  • Connector Layout: 1 (DE, E) High Density
  • Mounting Type: through-hole, right-angle
  • Temperature Range: -55°C to 130°C
  • Package: tube
  • Package Quantity: 850 units
  • Flange Feature: mating side, female screwlock (4-40)
