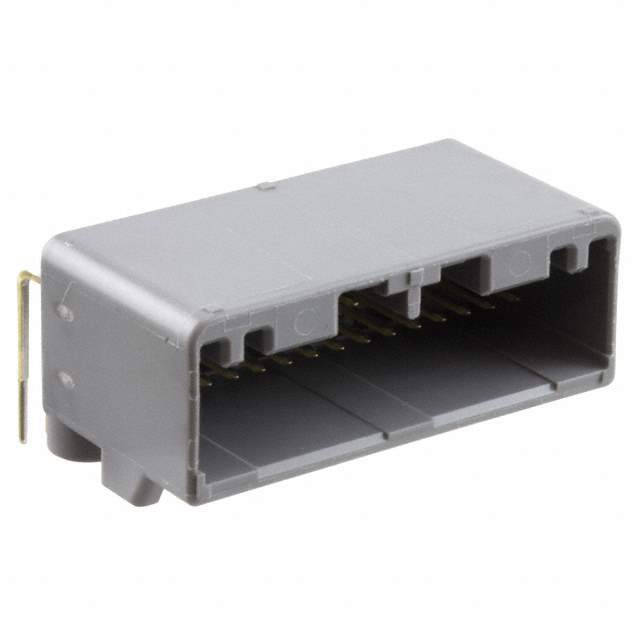

MX34028NF2 Real Image
Same model may have multiple batches, images only for reference.

MX34028NF2

Part No MX34028NF2
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER 28POS RT ANG TIN
Datasheet
MX34028NF2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 28
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.626" (15.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C to 85°C
Insulation Color Gray
Current Rating 3A
Applications Automotive
Win Source Part Number 1081333-MX34028NF2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MX34028NF2 CAD Model

Description

The MX34028NF2 is a 28-position header connector from JAE Electronics.

  • Positions: 28
  • Design: Shrouded-4 Wall
  • Application: Automotive
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Mounting Style: Through-Hole, Right-Angle
  • Operating Temperature: -40°C to 85°C
  • Connection: Board-to-Cable/Wire
