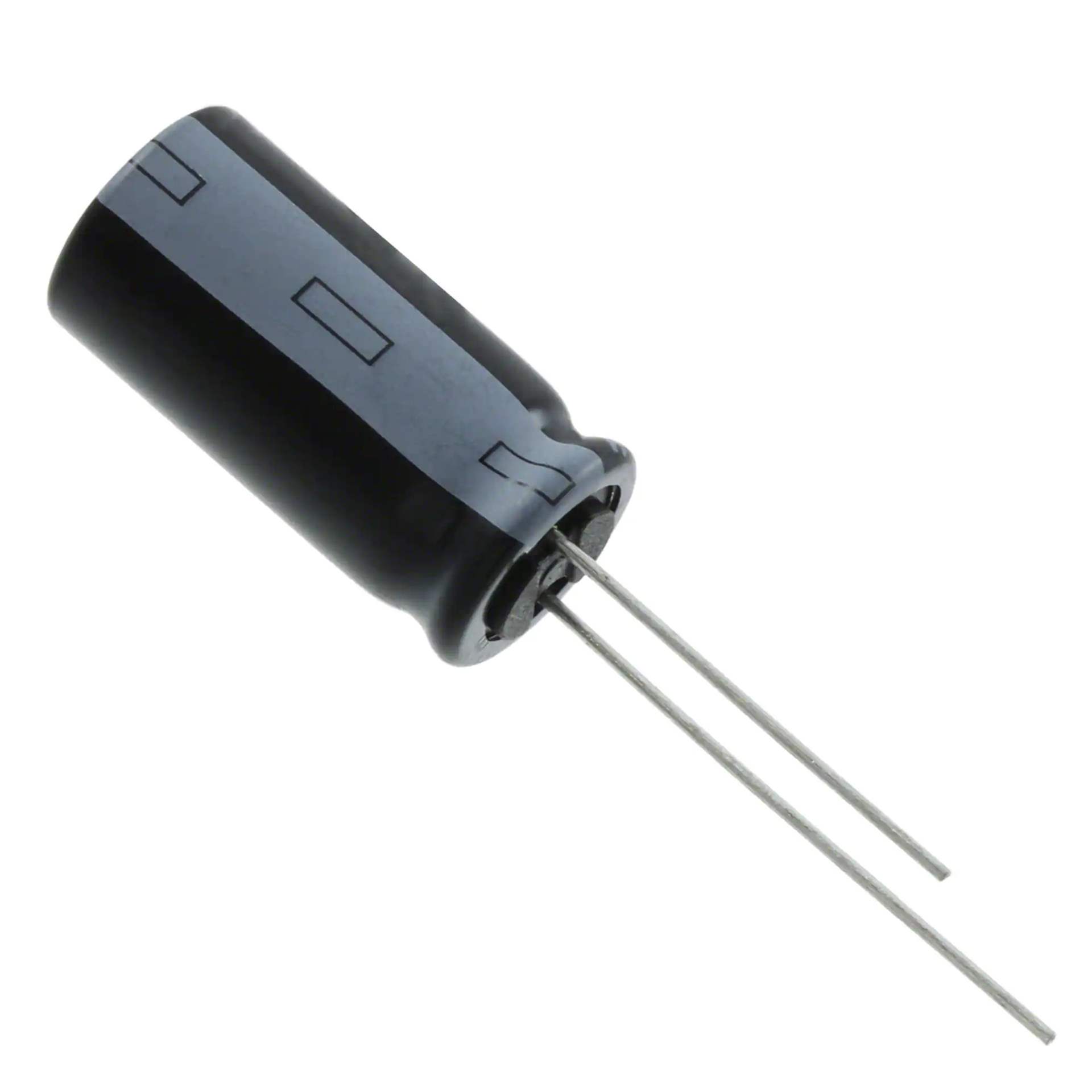

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.176 A @ 120 Hz
Ripple Current @ High Frequency 1.96 A @ 100 kHz
Impedance 20 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 850348-25ZLH820MEFC10X20
Ultra Librarian 3D Model Ultra Librarian 25ZLH820MEFC10X20 CAD Model

Description

The ZLH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Capacitance: 820 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Impedance: 20 mOhms
  • Design: Polarized
  • Mounting Type: Through-Hole
  • Diameter: 0.394" (10.00mm)
  • Height: 0.866" (22.00mm)
  • Lifetime: 10,000 hours @ 105°C
  • Manufacturer: Rubycon
  • Product Status: Active
