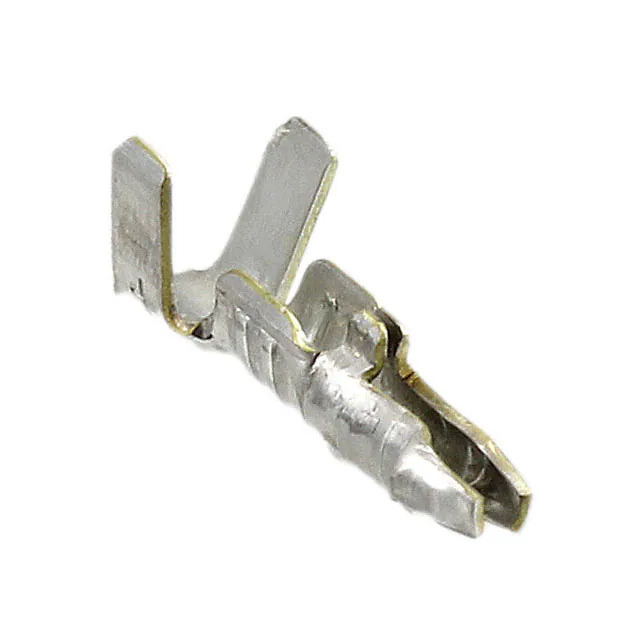

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Wire to Board Connectors
Mfr TE Connectivity AMP Connectors
Series Amp-In
Package Tape & Reel (TR)
Product Status Active
Terminal Type Through Board
Hole Diameter 0.071" ~ 0.075" (1.80mm ~ 1.91mm)
Insulation Diameter 0.060" ~ 0.110" (1.52mm ~ 2.79mm)
Length - Overall 0.398" (10.11mm)
Wire Gauge 18-22 AWG
Contact Material -
Contact Finish -
Base Product Number 170338
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363308-170338-1
Ultra Librarian 3D Model Ultra Librarian 170338-1 CAD Model

Description

The Amp-In Terminals are reliable wire-to-board connectors designed for various electronic applications. Manufactured by TE Connectivity AMP Connectors, these terminals offer secure and durable connections.

  • Wire Gauge Range: 18-22 AWG
  • Termination Type: Through-Board
  • Insulation Diameter: 0.060" to 0.110"
  • Hole Diameter: 0.071" to 0.075"
  • Series: Amp-In
  • Packaging: Tape & Reel
  • Product Status: Active
